- Type:Super Flux LED
- Place of Origin:CN;GUA
- Color Temperature:6000-7000k
- Color Rendering Index(Ra):70
- Brand Name:YLL
- Model Number:3 mm pirnaha super flux
- Power Dissipation:0
- Power:0.06W
- Luminous Flux(lm):7-10lm
- Luminous Intensity:2000-3000mcd
- Storage Temperature(℃):-30 - 80
- Optical Attenuation(%):2
- Viewing Angle(°):120
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Operating Temperature(℃):-40 - 100
- Emitting Color:white

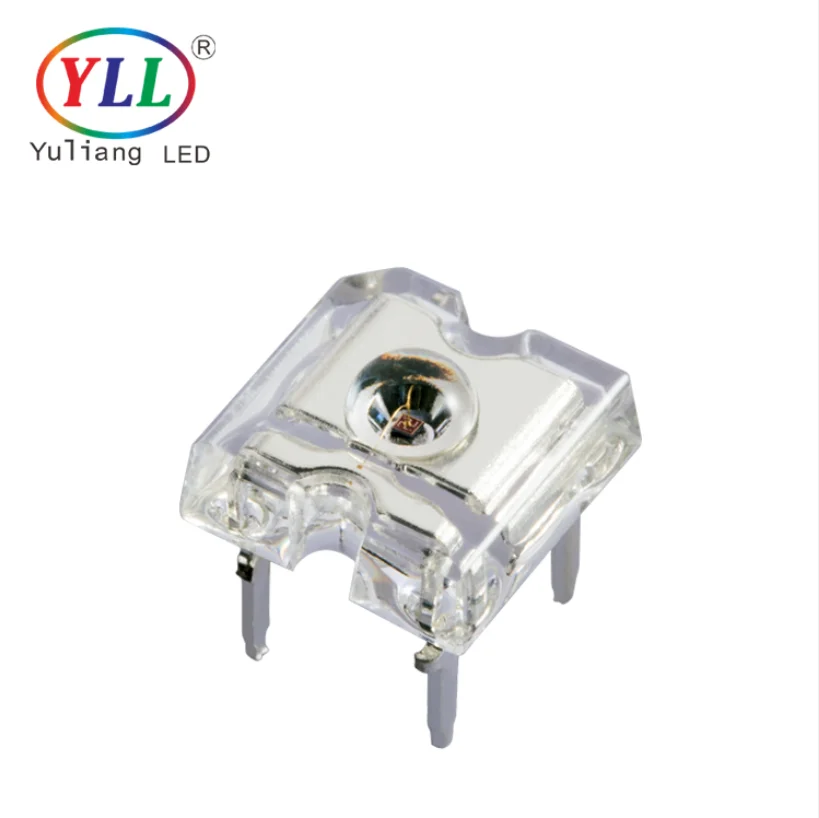

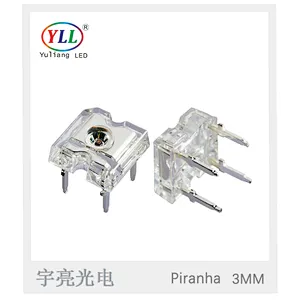

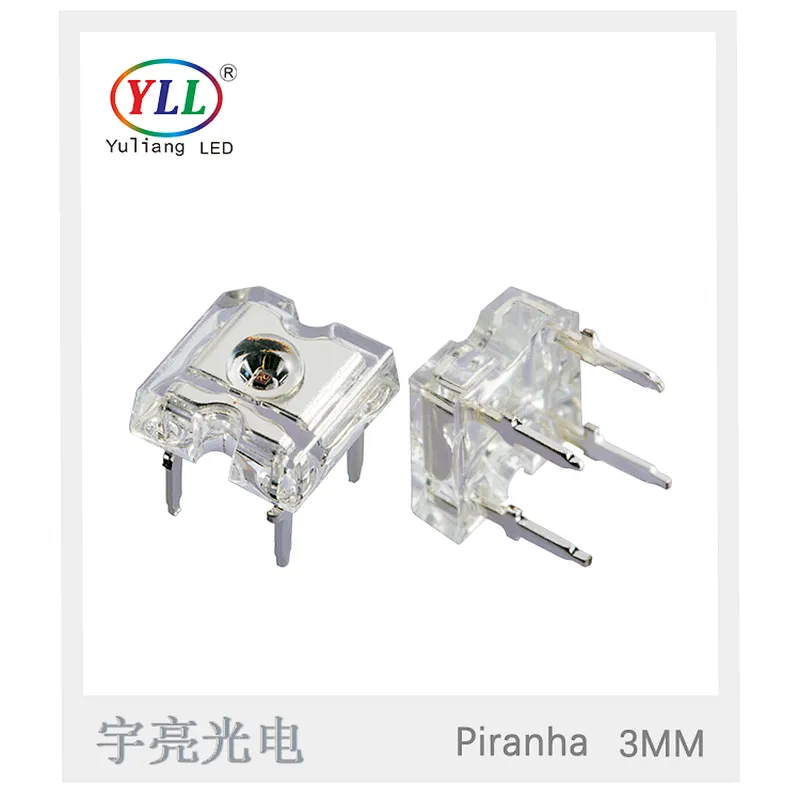

warm white 3mm 5mm 7mm Piranha super flux led
Product Introduction
3 mm super flux led warm white 5mm 7mm Piranha led best for car light | |
Product data | |
item | 3 mm super flux led warm white 5mm 7mm Piranha led best for car light |
Emitting Color | warm white |
Wavelength | 6000-7000k |
Luminous flux | 2000-3000mcd |
CRI | 70Ra |
View Angle | 120degree |
Voltage | 3.0-3.4V |
Reverse Voltage | 5V |
Current | 20mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
diameter | 3mm |
Feature | |
High intensity Polygonal LED lamp F5 MM round shape UV resistant epoxy
| |
Application | |
LED lighting Automotive Lighting application Advertising industry Car light | |

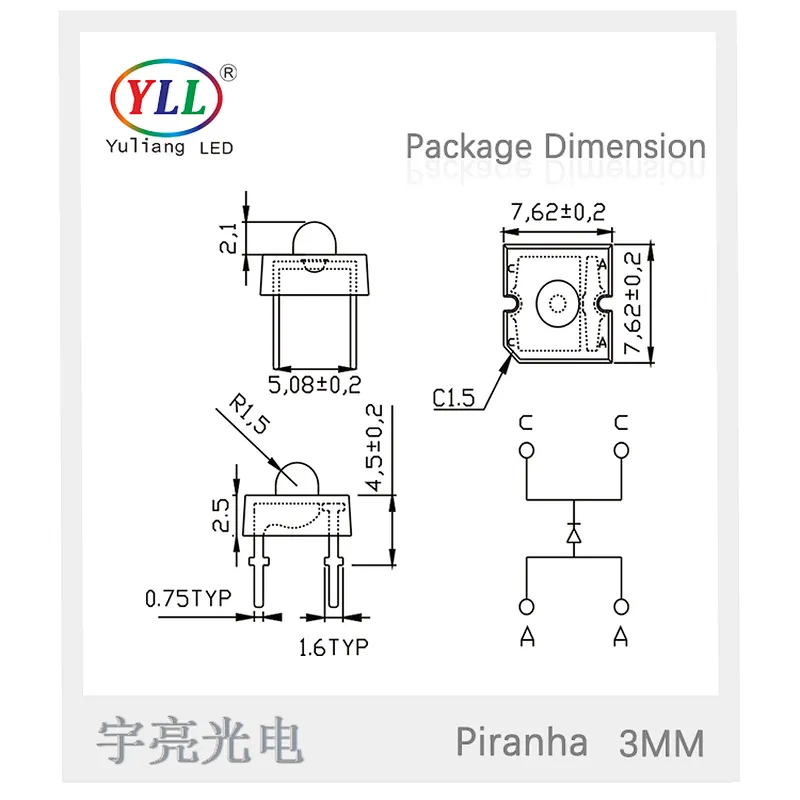

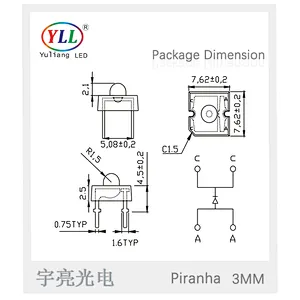

Notes
All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Optical Characteristics

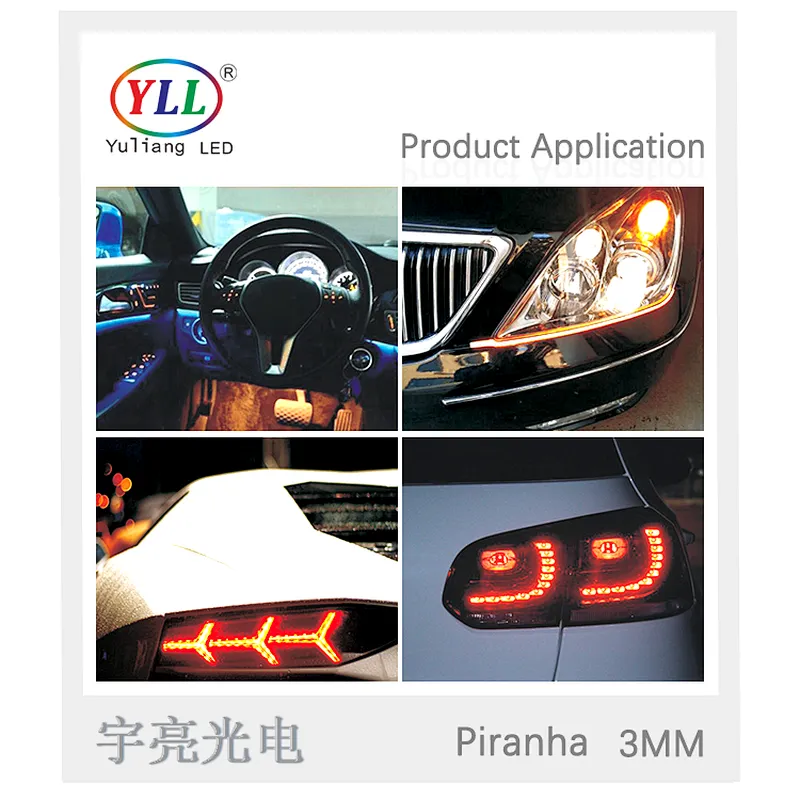

Product application:
