- Type:Super Flux LED
- Place of Origin:CN;GUA
- Color Temperature:620-630nm
- Color Rendering Index(Ra):70
- Brand Name:YLL
- Model Number:5mm Piranha Led Super Flux
- Power Dissipation:0
- Luminous Flux(lm):3-60lm
- Luminous Intensity:3-60lm
- Storage Temperature(℃):-30 - 80
- Optical Attenuation(%):0.2
- Viewing Angle(°):90 Degree
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Operating Temperature(℃):-40 - 100
- Power:0.2w/0.5w
- Emitting Color:red/green/blue/yellow/orange/white /cool white/worm white

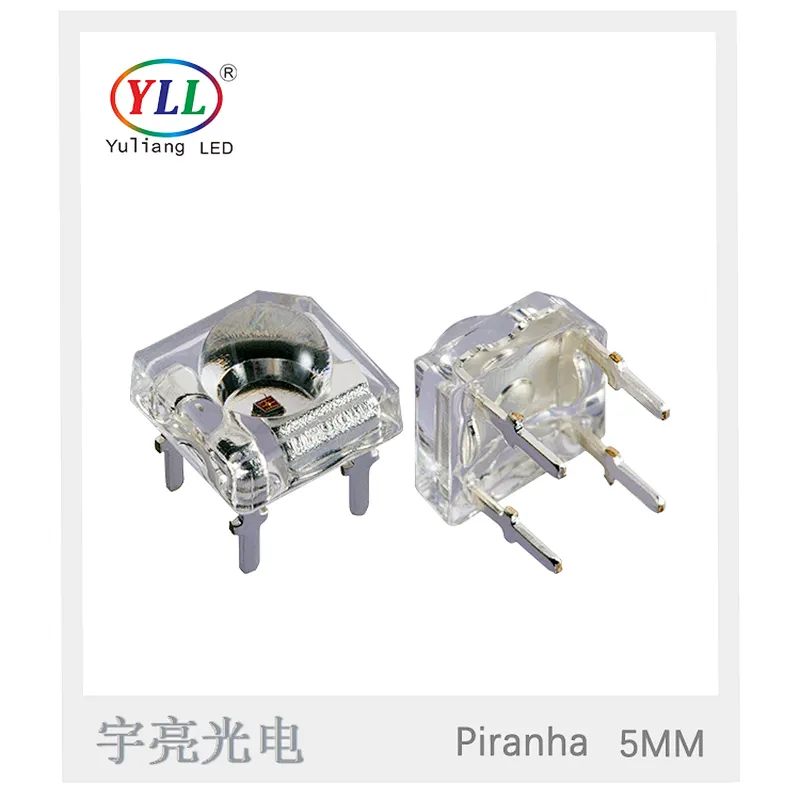

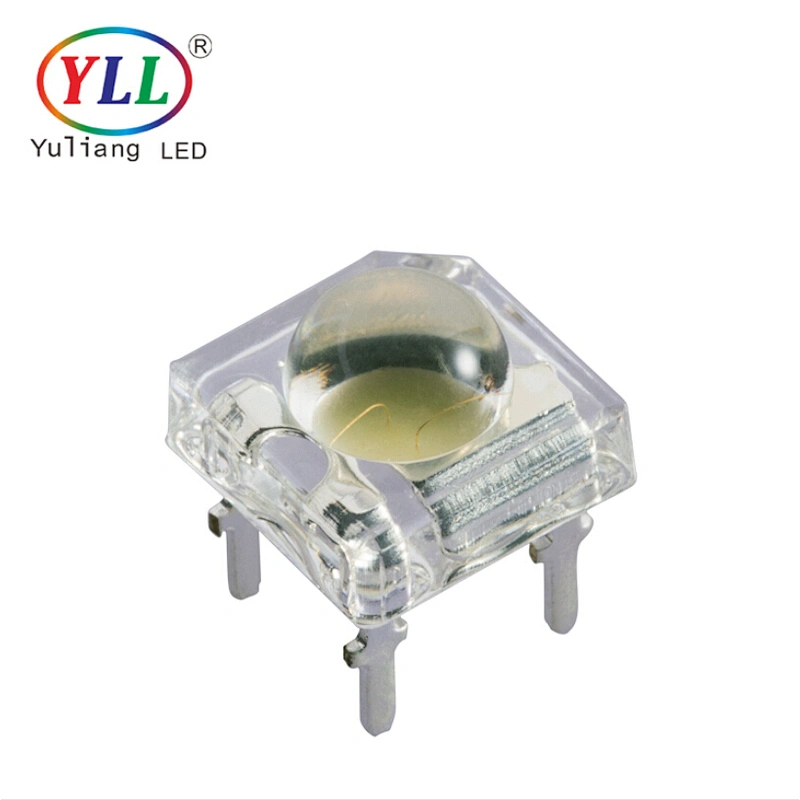

car lights dedicated superflux 5mm rgb piranha led
Product Introduction
car lights dedicated superflux 5mm rgb piranha led | |
Product data | |
item | car lights dedicated superflux 5mm rgb piranha led |
Emitting Color | rgb |
Wavelength | 620-630nm/515-525nm/465-470nm |
Luminous flux | 1000-1600mcd/2000-3000mcd/1000-1200mcd |
CRI | 75Ra |
View Angle | 120degree |
Voltage | 3.0-3.4V |
Reverse Voltage | 5V |
Current | 20mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
diameter | 5mm |
Feature | |
High intensity Polygonal LED lamp F5 MM round shape UV resistant epoxy
| |
Application | |
LED lighting Automotive Lighting application Advertising industry Car light | |

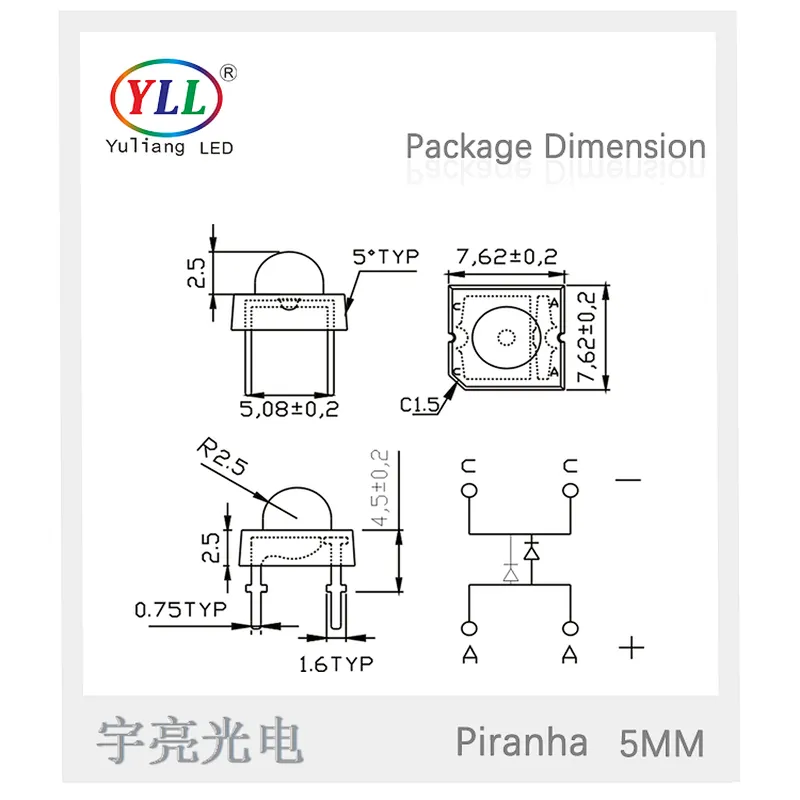

Notes
All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Optical Characteristics
Product application:
