- Type:Super Flux LED
- Place of Origin:CN;GUA
- Color Temperature:620-630nm
- Color Rendering Index(Ra):80
- Brand Name:YLL
- Model Number:3 mm pirnaha super flux
- Power Dissipation:0
- Power:0.06W
- Luminous Flux(lm):1500-2500mcd
- Luminous Intensity:1500-2500mcd
- Storage Temperature(℃):-30 - 80
- Optical Attenuation(%):0.02
- Viewing Angle(°):120
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Emitting Color:Red
- Operating Temperature(℃):-40 - 100

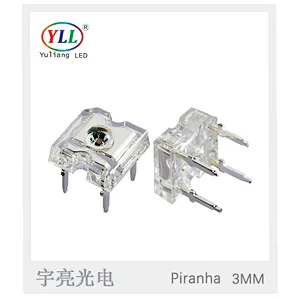

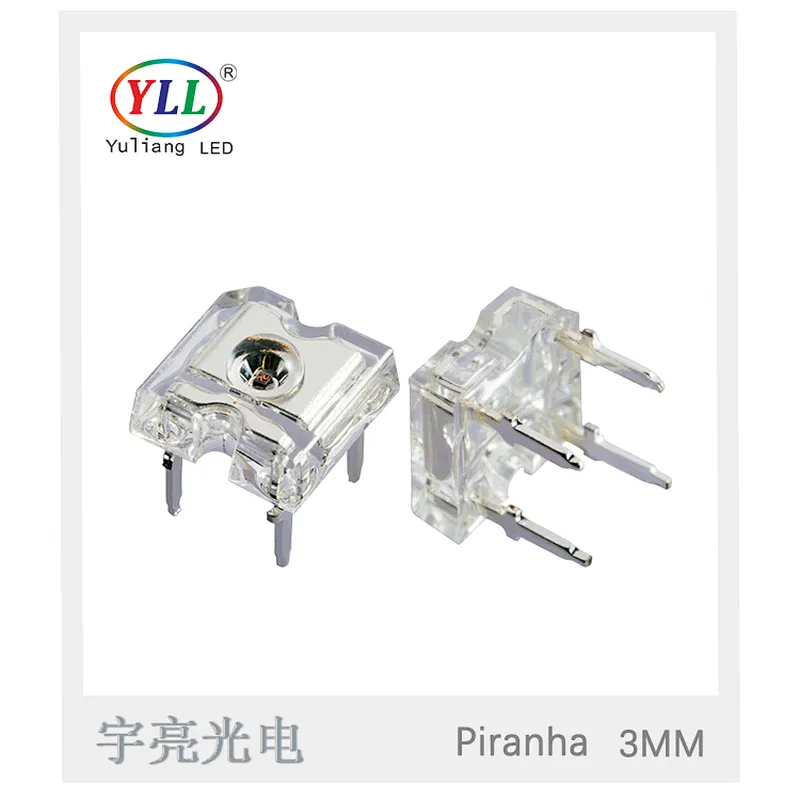

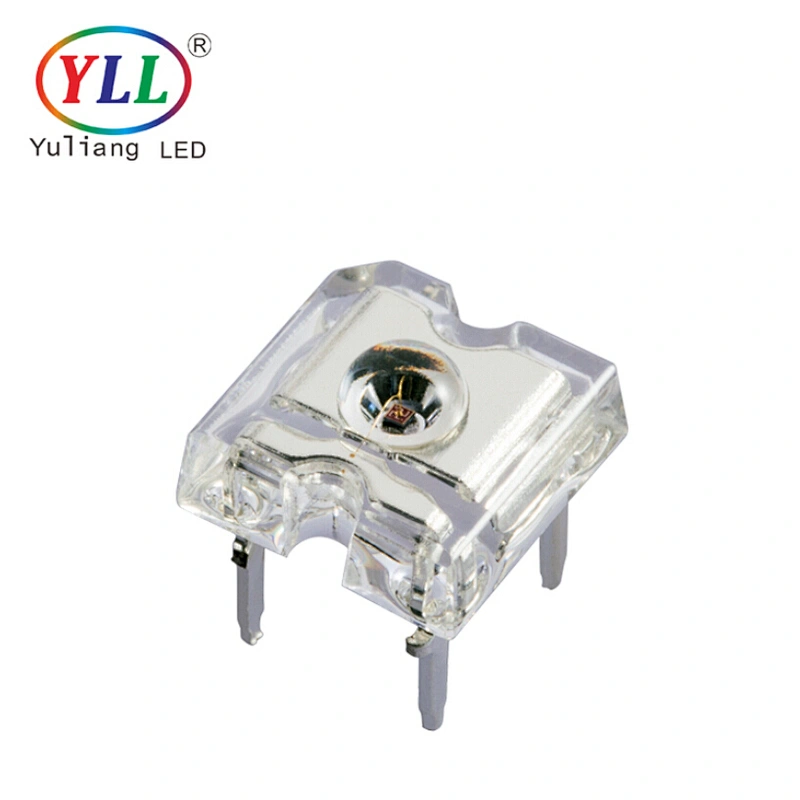

Automotive superflux epistar chip 3mm red 30 degree piranha led
Product Introduction
Supply LED Piranha 3mm / 5mm LED Super Flux | |
Product data | |
item | Supply LED Piranha 3mm / 5mm LED Super Flux |
Emitting Color | red |
Wavelength | 620-630nm |
Luminous flux | 1500-2500mcd |
CRI | / |
View Angle | 120degree |
Voltage | 2.0-2.4v |
Reverse Voltage | 5V |
Current | 20mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
diameter | 3mm |
Feature | |
High intensity Polygonal LED lamp F5 MM round shape UV resistant epoxy
| |
Application | |
LED lighting Automotive Lighting application Advertising industry Car light | |
Notes

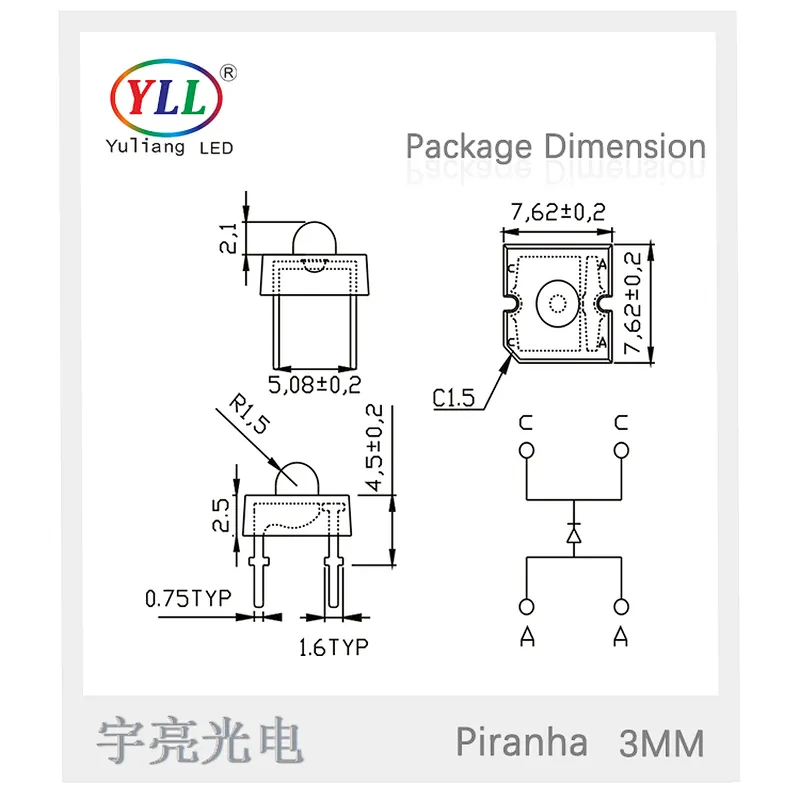

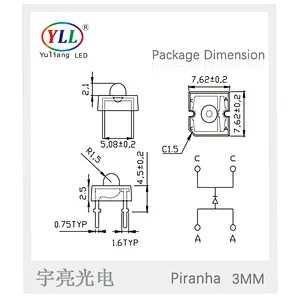

All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Optical Characteristics
Part No. |
Material |
Emitting color | Forward voltage( V) | Luminous Intensity(mcd) | Dominant Wavelength(nm) | ViewingAngle (2θ 1/2) | |||
Min | Max | Min | Max | Min | Max | ||||
3MM piranha led | AlGaInP | Red | 1.8 | 2.2 | 3000 | 4000 | 620 | 630 | 40±5 |
Product application:
