- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:R620-630nm G515-525nm B465-470nm
- Color Rendering Index(Ra):90
- Brand Name:Yuliang
- Model Number:5050
- Power Dissipation:0.05
- Luminous Flux(lm):400-600mcd(R); 800-1000mcd(G); 300-500mcd(B);
- Luminous Intensity:400-600mcd(R); 800-1000mcd(G); 300-500mcd(B);
- Storage Temperature(℃):-20 - 80
- Optical Attenuation(%):0.05
- Viewing Angle(°):140
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Operating Temperature(℃):0 - 60
- Power:0.2W
- Emitting Color:RGB
Ultra Violet 5050rgb SMD LED/UV LED ROHS&CE Approval
Main Features
-Thermo electric Separation
-Dead lamp-Proofing
-Sulfide-proofing
-moisture-proofing
-High brightness
-wide beam angle
-Low impendence
-Good heat disspitation
advantages
1.Epistar proof document,Pass Energy Star LM80 and CE ROHS
2.Long Lifespan 100000hours
3.Low Light Decay
4.Enviornmental protection,No Mercury.
5.Energy Saving
6.Fast Response Time,response in dozens of ns,safely.
7.Small Volume, Light Weight,Shock-proofing
8.High Lumens,Light Source Stable ,Low Heat Dissipation
9.Easy to adjust the light and color temperature

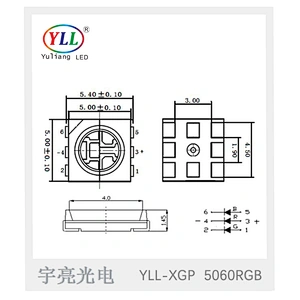

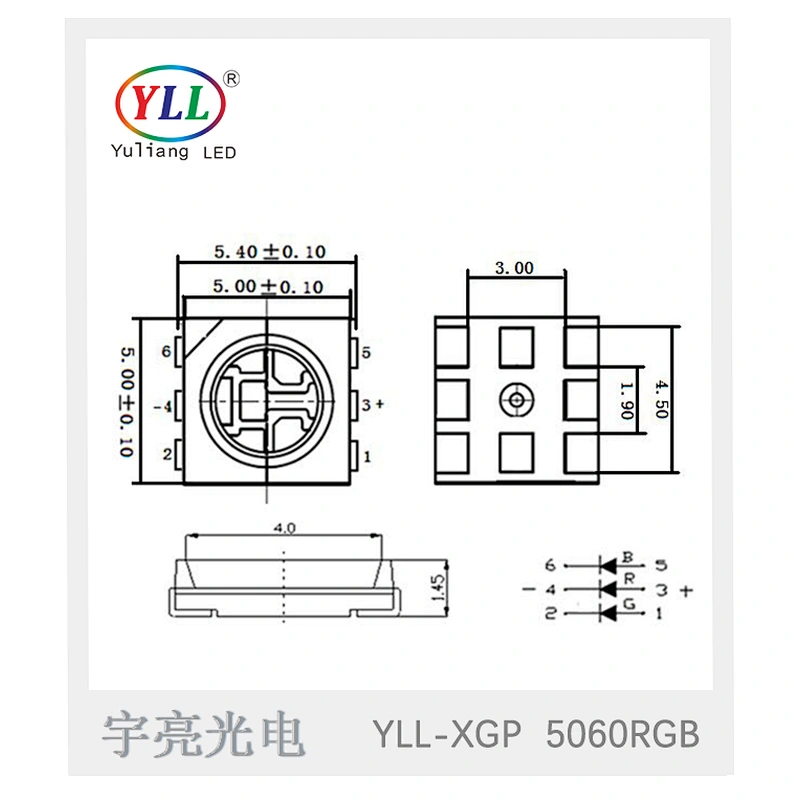

Package Dimensions
Notes
All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Product Application
Yuliang LED 5050SMD is widely applying for LED Flexible strip Light, LED Hard Strip Light,LED Guardrail Tube, LED Module, LED Point Light Source Etc.
Why choose us?
We strictly control product quality
Raw Material inspection and quality status analysis to ensure raw materials Mission's requirements.
According raw material supplier quality record. Raw material supplier will be sifted out by our
company if their yield rate under 93%.
led rgbw environmental test and aging testEnvironmental test machine usedto test
led rgbw are they can work in the harsh environments,asthe result ofthe testreport,
our led rgbw are in good working when the temperature dropped tozero (40 degrees
below zero )C,led rgbw are in good working when the temperature reach to 80degrees.
Vibration test machine:Simulation of Motion in the shipment to ensure goods are not damaged.
led rgbw aging testing in house lab,they are 24 hours on work.
We can know the problem by microscope,Resolve problems quickly
All led rgbw must be tested in the high -temperature oven for 3 times,each time 2-3 hours.
Before shipment,All of finished products must be tested in the aging room for more than 8hours
Yuliang Honor and Qualification
Yuliangestablished in 2001,we located in Silicon Valley Power Industrial Park Guanlan Town,Shenzhen,China, Yuliang has a building which Covering an area of 7000 square meters,Factory production workshop for anti-static, dust treatment, Production process in strict anti-static control,we have 10 engineers who have more than 10 years work experience in LED lighting area ,and we have 200 workers.
Yuliang focus on developing and manufacturing indoor LED lighting,including LED Strip kit,LED Tube,LED Panel,LED Bulb,LED Spotlight,LED Downlight and LED module.
Yuliangalso focus on developing,manufacturing and sell LED light source,like SMT SMD LED Series,Super flux LED,COB LED,High power LED.
Yuliangsuccessfully passed the German TUV factory inspection in 2010, and all of products have CE Certification and ROHS compliance for Europe market,and ETL,UL for USA market.As a result of our high quality products and outstanding customer service,we have gained a global sales network reaching German, Belgium, Switzerland,France,Italy and USA
Yuliang signed a cooperation agreement with the Taiwan EPISTAR in 2010,in the same year,we become one of the partner of Taiwan Epistar!and the raw materials used in products are mainly import from Japan,Singapore,USD and Taiwan.
Honesty is the best policy for long time business.Quality is the bridge between YLL and you.
