We have more than 20 professional lamp R & D engineers, independent of the LED packaging laboratory, can achieve high and low temperature thermal shock test, anti sulfuration, moisture test, constant temperature and humidity, lm-80 standards 6000H continuous decay test etc., the products have been patent number 30.
- Type:SMD LED
- Chip Material:InGaN
- Emitting Color:Tri-Color(Red-Blue-Green)
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Power:0.2w
- Luminous Intensity:R:620-630nm G:520-530nm B:460-470NM
- Luminous Flux(lm):R:1.8-2.4lm G:4.2-4.8lm B:0.9-1.5lm
- Optical Attenuation(%):2
- Power Dissipation:0.1
- Viewing Angle(°):120
- Color Rendering Index(Ra):80
- Color Temperature:RGB
- Operating Temperature(℃):0 - 80
- Storage Temperature(℃):5 - 30
- Brand Name:YLL
Products Description
Emitting Color | RGB |
Luminous | R:1.80-2.4 G:4.2-4.8 B:0.9-1.5 |
View Angle | 120 degree |
Voltage | R:2.0-2.2V G&B:3.2-3.6V |
Current | 20*3mA |
Lifespan | 50000 hours |
Warranty | 2 Years |

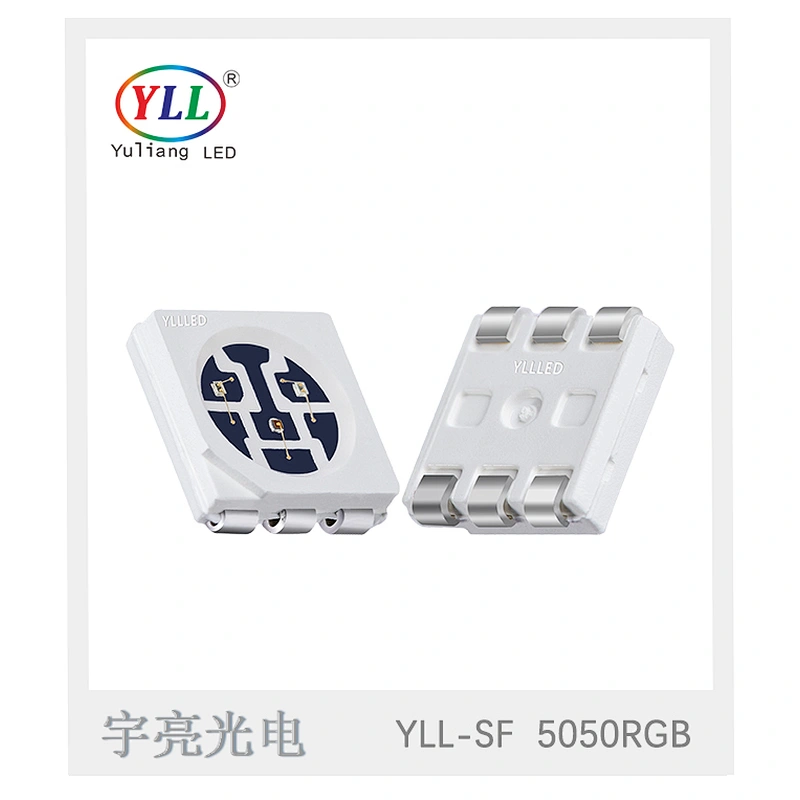

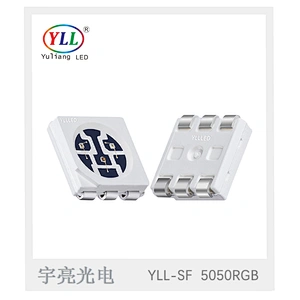

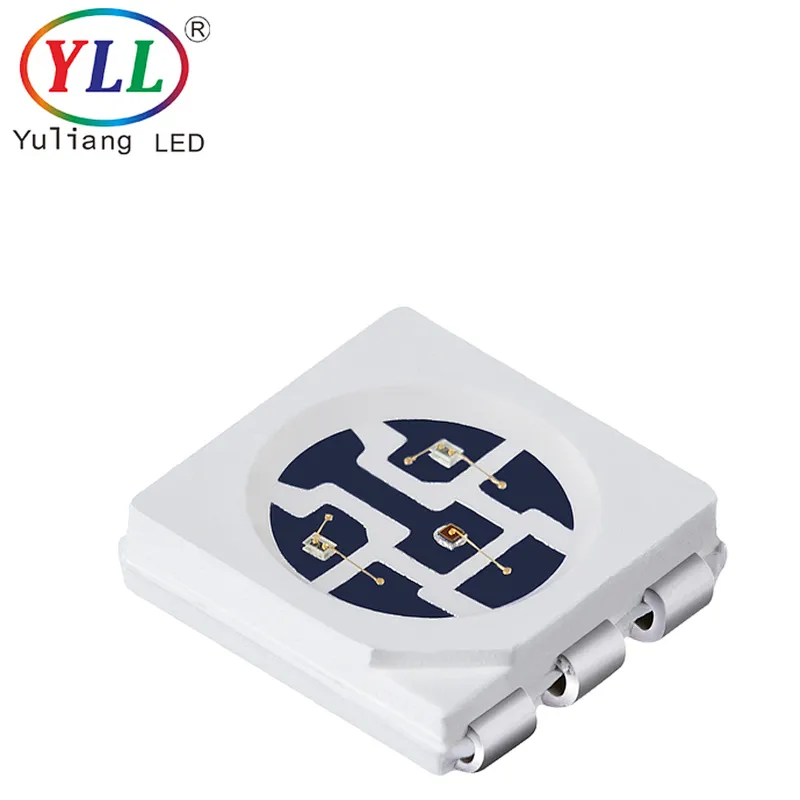

Picture show
Application
Feature
--Anti-vulcanization
--moistureproof
--Anti-dead lanp
--Good heat dissipation
--low luminous attention.
Application
--Rigid and flexible strip
--Pixel dots
--Guardrail tube
--LED module
--Outdoor fixture
Certifications
1.According to the US Energy Star standard IES LM-80.
Chip production is mainly from international companies (EPISTAR, CREE, OSROM), we have strengthened the integration of supply chain resources to do incoming inspection, process specifications, complete shipment inspection processes, and strive to assure product customers.
2.Outdoor lighting source research and development.
Continue to provide innovative LED lamp for outdoor LED light industry, 5050 has been a successful mass protruding headlights beads, 5050RGBW lamp beads, 5050RGB lamp beads, lamp beads high was 5054,"three defenses"series 5050 lamp beads.
3.we serve industry more than 10 years of car lights.
Car tail lights, brake lights, turn signals and so many well-known international brands, successfully developed the"Little Red Riding Hood"series 3528 projection headlights beads, bullet piranha light beads, big feet piranhas lamp beads, full-color RGB piranha lamp beads.
Our Partner
Company Profile
Shenzhen Yu Liang Optoelectronic Technology Co., Ltd. was established in 2001, is a national high-tech enterprises. Factory is mainly engaged in research and development, production and sales of ultra high brightness red, yellow, orange, blue, green, purple, pink, light, white light, warm white, golden yellow light RGB to RGBW such as a full range of single core piranha led, multi core piranha led, power 0.5W led piranha, and SMD series 3014 side luminous, 3014,3528, 2735,5730,5050 SMD LED lamp beads, widely used in LED lamp, LED outdoor lamps, indoor lighting, commercial lighting, LED light source field advertising logo.Factory has the world's leading automatic LED packaging production line, more than 10 LED industry over ten years of experience in engineering and technical personnel and senior management, modern LED packaging workshop area of more than 6000 square meters, with scientific management, excellence, customer trust for the company's quality policy, and continuously meet customer demand LED series of products.
Why Choose Us
1.R & D strength:
2.Products strength
More than 10 years LED package experience, more than 6000 square meters of modern led dust-free workshop, the company's first"three defenses"technology perfect solve SMD LED lamp bead high death rate of lamp, vulcanization, moisture absorption and other issues, truly realize the SMD beads (moisture-proof, anti sulfuration, death proof lamp).
Company in strict accordance with the ISO9001:2008 quality management system operation, the white light district in strict accordance with the U.S. Energy Star LM-80 IES standard production, a variety of products have passed the US. Energy Star LM-80 IES test, SGS, ROHS, EN62471 and other certification.
Yu Liang commitment:
We promise customers purchasing conventional color temperature products long-term stable supply of a bin, sampling in accordance with customer delivery is completed within 3 days, 5-7 days of completing the small batch orders, conventional products are completed within 1-2 days, response within 24 hours of customer complaint, timely, efficient handling of a series of problems faced by customers.
FAQ
Q1. Can I have a sample order for led light?One: Yes, we welcome sample order to test and check quality. sample is free.Q2. What about the lead time?Two:Sample needs 1-3 days, mass production time needs 3- 10 days for order quantity more thanQ3. Do you have any MOQ limit for led light order?What's the Payment way ?Three: MOQ is 1roll for each model. We accept T/T Paypal and Western Union three ways paymantQ4. How do you ship the goods and how long does it take to arrive?Four: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-7 days to arrive. Airline and seashipping also optional.Q5. How to proceed an order for led light?Five: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange theproduction and Delivery.Q6. ls it oK to print Specified logo on led light product?Six: Yes. We can OEM,Please inform us formally before our production and confirm the design firstlybased on our sample.Q7: Do you offer guarantee for the products?Seven: Yes, we offer 0-5 years warranty to our products. Each product's details page will be described.
