- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:RGB
- Color Rendering Index(Ra):70
- Brand Name:YLL
- Model Number:YLL-T50RGBXX
- Power Dissipation:0.2
- Luminous Flux(lm):10
- Storage Temperature(℃):-20 - 85
- Optical Attenuation(%):1
- Viewing Angle(°):120degree
- Chip Material:InGaN
- Emitting Color:Tri-Color(Red-Blue-Green)
- Operating Temperature(℃):-40 - 85
- Power:0.2w

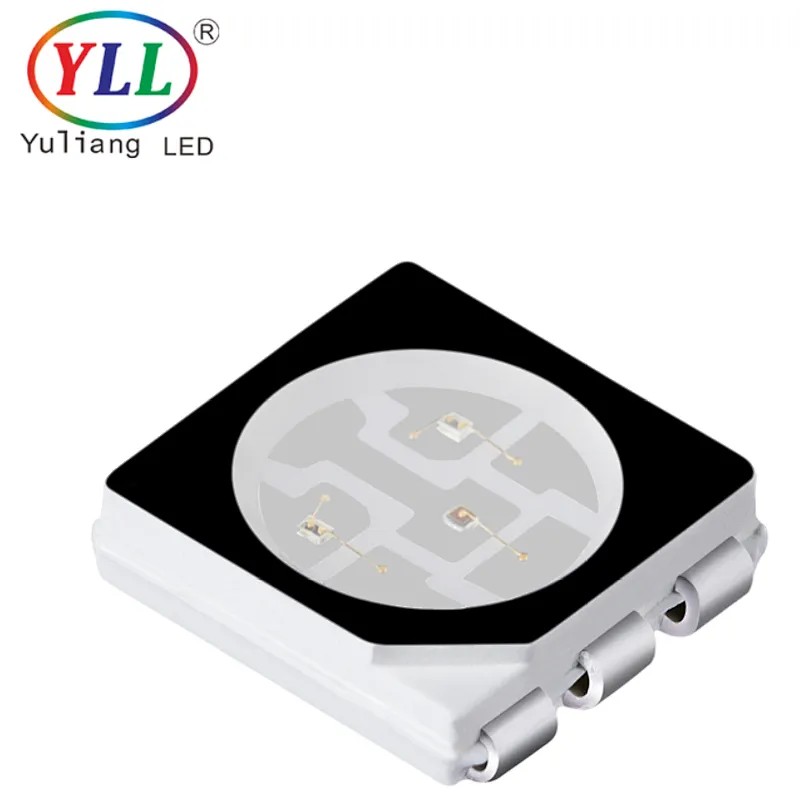

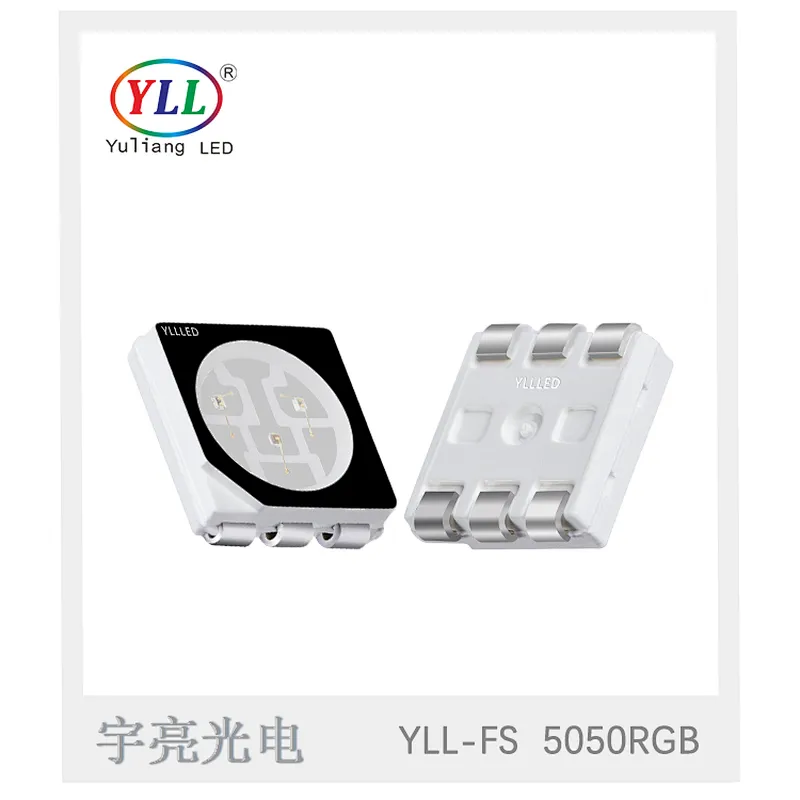

Epistar chips Waterproof 5050 SMD LED chip for Wall Washer Light
5050 SMD LED Epistar chips Waterproof for Wall Washer Light | |
Product data | |
item | 5050 SMD LED Epistar chips Waterproof for Wall Washer Light |
Emitting Color | Red Green Blue |
Wavelength | R:620-630nm,G:515-525nm,B:465-470nm |
Luminous flux | R:600-800mcd,G:1000-1200mcd,B:400-600mcd |
CRI | 75Ra |
View Angle | 120degree |
Voltage | R:2.0-2.2V,G;3.0-3.4V,B:3.0-3.4V |
Reverse Voltage | 5V |
Current | 20mA |
Lifespan | 50000 hours |
Warranty | 2 Years |

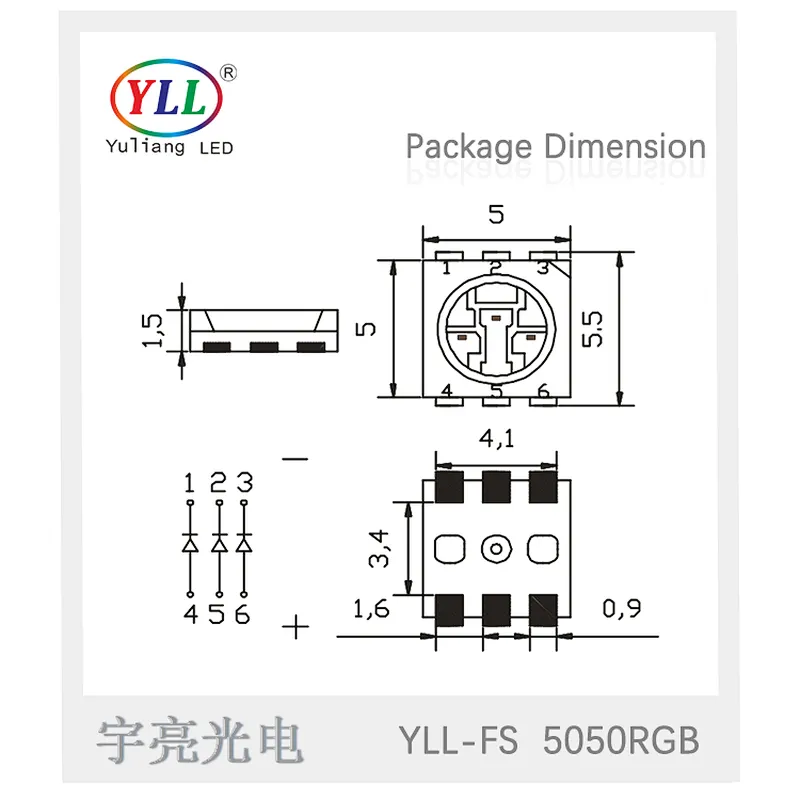

Size | 5.0*5.0*2.8mm |
Feature | |
-Moisture-Proofing -Dead Lamp-Proofing -Sulfide-Proofing -Good Heat Dissipation -Low Light Decay | |
Application | |
-Flexible and Hard Strip Light -Guardrail Tube -Point Light Source -Module -LED Display | |
Absolute Maximum Ratings at TA=25℃
Electrical / Optical Characteristics at TA=25℃
Product application:
Yuliang LED 5050 RGBW SMD is widely applying for
Outdoor Point Light Source, Fence Tube,Wall Washer Light,Line Lamp,Intelligence home lighting etc
Pictures | Features & Application | Datasheet |
| 5050 Monochromatic light | ||
 | Feature: Thermo electric Separation Sulfide-proofing Application: LED Flexible strip Light LED Hard Strip Light LED Guardrail Tube LED Module LED Point Light Source LED outdoor lamps | Type: SMD LED Model Number: YLL5050 Emitting Color: red,yellow,green,blue,orange Luminous Flux(mcd): 800-4000mcd Power: 0.2W Power Dissipation: 0 Viewing Angle(°): 120 Color Rendering Index(Ra): 80 Operating Temperature(℃): 40 - 60 Storage Temperature(℃): 20 - 80 Voltage: 2.0-2.2 3.0-3.4 Place of Origin: Guangdong, China (Mainland) Brand Name: YLL Certification: CE, RoHS LED chip: Epistar warranty: 2years service: OEM ODM are welcomed LED type: SMD5050 Package: Anti-static bag |
