- Type:Super Flux LED
- Chip Material:InGaN
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Emitting Color:white
- Power:0.5W
- Luminous Intensity:10000-15000mcd
- Luminous Flux(lm):10000-15000mcd
- Optical Attenuation(%):2
- Power Dissipation:0
- Viewing Angle(°):90
- Color Rendering Index(Ra):70
- Color Temperature:6500-7000k
- Operating Temperature(℃):-40 - 100
- Storage Temperature(℃):-30 - 80
- Brand Name:YLL

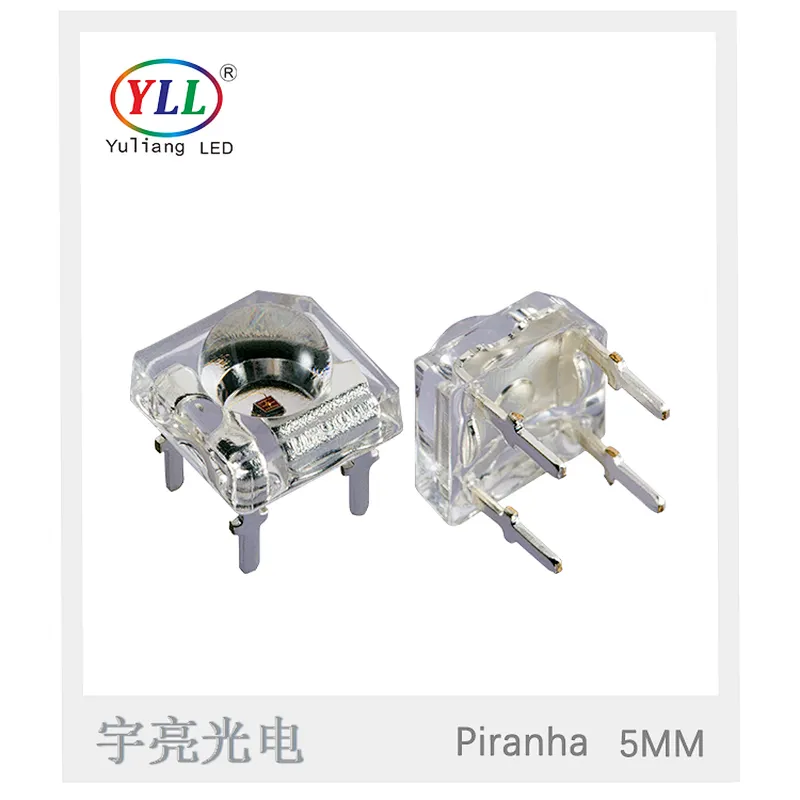

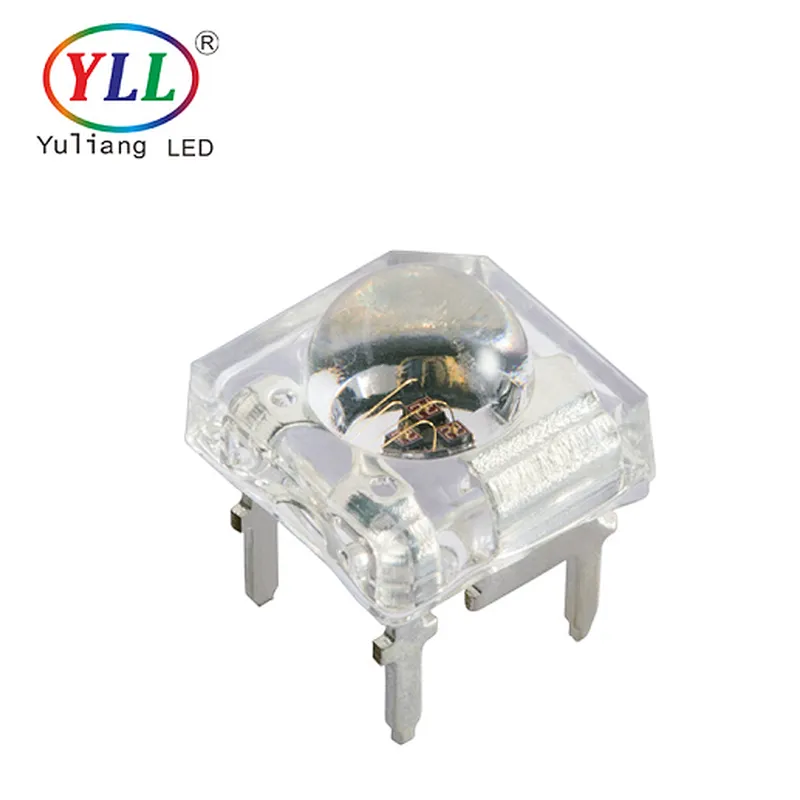

60 degree white Super Flux 5mm led piranha 0.5w ,0.2w is also available
Product Introduction
60 degree white Super Flux 5mm led piranha 0.5w ,0.2w is also available | |
Product data | |
item | 60 degree white Super Flux 5mm led piranha 0.5w ,0.2w is also available |
Emitting Color | warm white |
Wavelength | 6500-7000k |
Luminous flux | 10000-15000mcd |
CRI | 70Ra |
View Angle | 90degree |
Voltage | 3.0-3.4V |
Reverse Voltage | 5V |
Current | 150mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
diameter | 5mm |
Feature | |
High intensity Polygonal LED lamp F5 MM round shape UV resistant epoxy
| |
Application | |
LED lighting Automotive Lighting application Advertising industry Car light | |
Notes

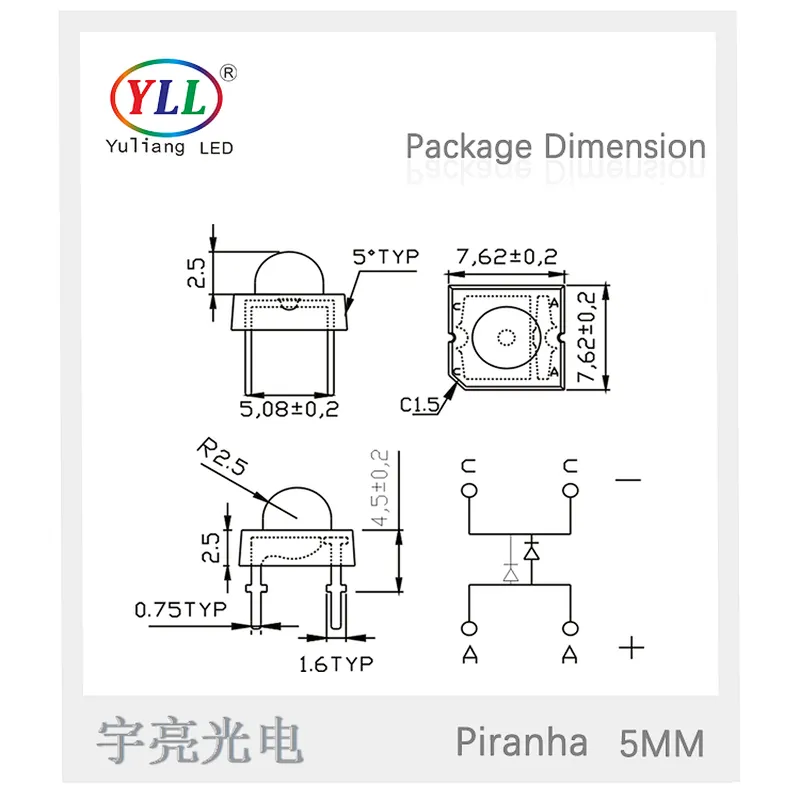

All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Optical Characteristics
Product application:
