- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:Yellow
- Color Rendering Index(Ra):70
- Brand Name:YLL
- Model Number:YLLPIRANHA5MM
- Luminous Flux(lm):20-35lm
- Storage Temperature(℃):-20 - 85
- Optical Attenuation(%):1
- Viewing Angle(°):30degree
- Chip Material:InGaN
- Operating Temperature(℃):-40 - 85
- Power:
- Emitting Color:Yellow

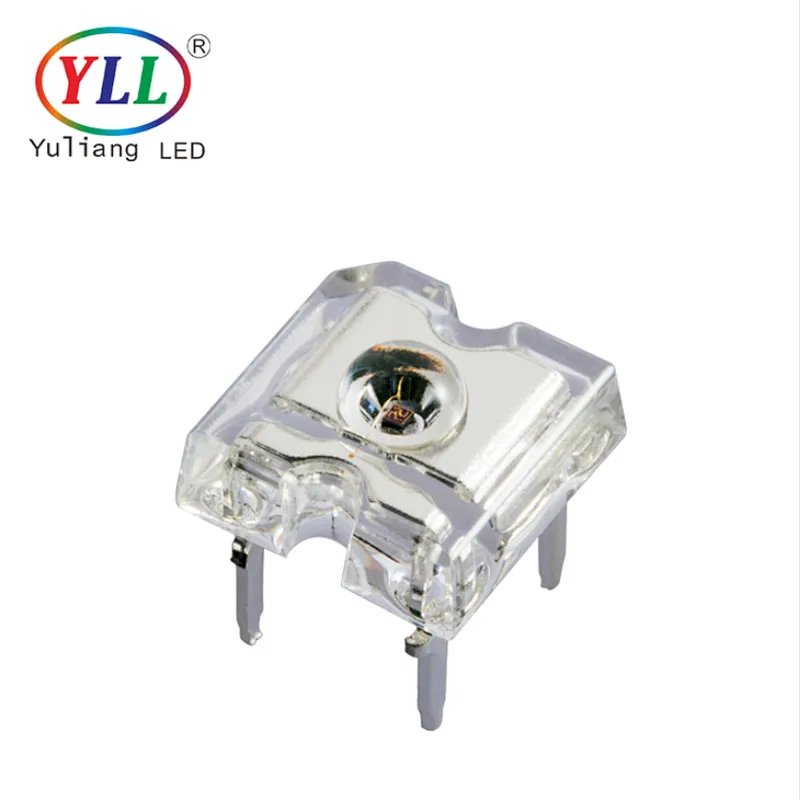

0.06W Copper Bracket LED 30 Degree Yellow LED 5mm Piranha LED
Shenzhen Yuliang Optoelectronic LED Lights 5mm Piranha LED 30Degree 0.06W Copper Bracket LED Yellow | |
Product data | |
Item |
Shenzhen Yuliang Optoelectronic LED Lights 5mm Piranha LED 30Degree 0.06W Copper Bracket LED Yellow |
Emitting Color | YELLOW 30 0.2W |
Wavelength | 588-590nm |
Luminous flux | 20-35LM |
CRI | 75Ra |
View Angle | 30degrees |
Voltage | 2.0-2.2V |
Current | 20MA |
Lifespan | 50000 hours |
Warranty | 2 Years |
Size | Ø5mm |
Feature |
|
-Moisture-Proofing -Dead Lamp-Proofing -Sulfide-Proofing -Good Heat Dissipation -Low Light Decay | |
Application | |
-Flexible and Hard Strip Light -Guardrail Tube -Point Light Source -Module -LED Display | |
Unit: mm
Tolerance are±0.2,unless note otherwise
* Duty ratio max 1/10 Pulse Width max. 0.1ms;
At the position of 4mm from the bottom of the package within 5 seconds.
Electrical Optical Characteristics (Ta=25℃, @IF=40mA)
* Luminous Intensity Measure tolerance are 15%
Product application:
Product application:
Yuliang LED Ø5 PIRANHA IS WIDELY APPLYING FOR FLEXIBLE STRIP LIGHT,HARD STRIP LIGHT,
LED GUARDIANCE TUBE, POINT LIGHT SOURCE,LED MODULE,OUTDOOR LIGHTING,CAR LIGHTS ETC
