- Type:SMD LED
- Chip Material:InGaN
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Model Number:SMD 2835 LED
- Luminous Intensity:7200-8000mcd
- Luminous Flux(lm):24-26lm
- Optical Attenuation(%):2
- Viewing Angle(°):120
- Color Rendering Index(Ra):85
- Color Temperature:6000-6500k
- Brand Name:YLL
- Emitting Color:pure white
- Power:0.2w

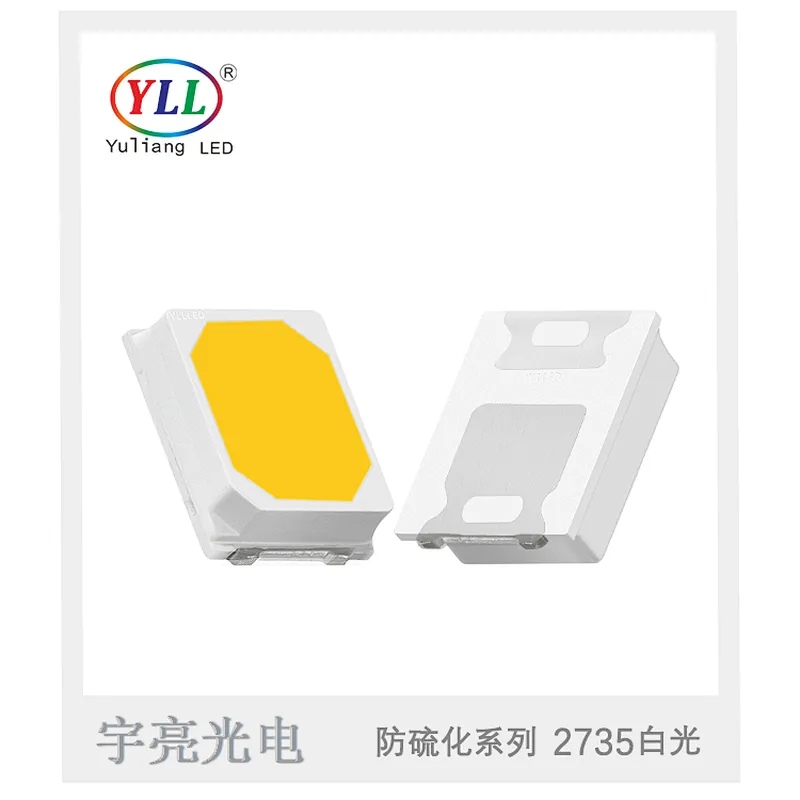

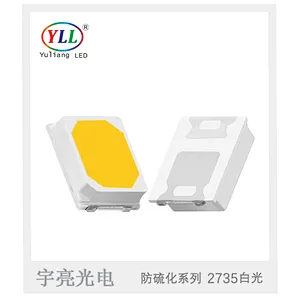

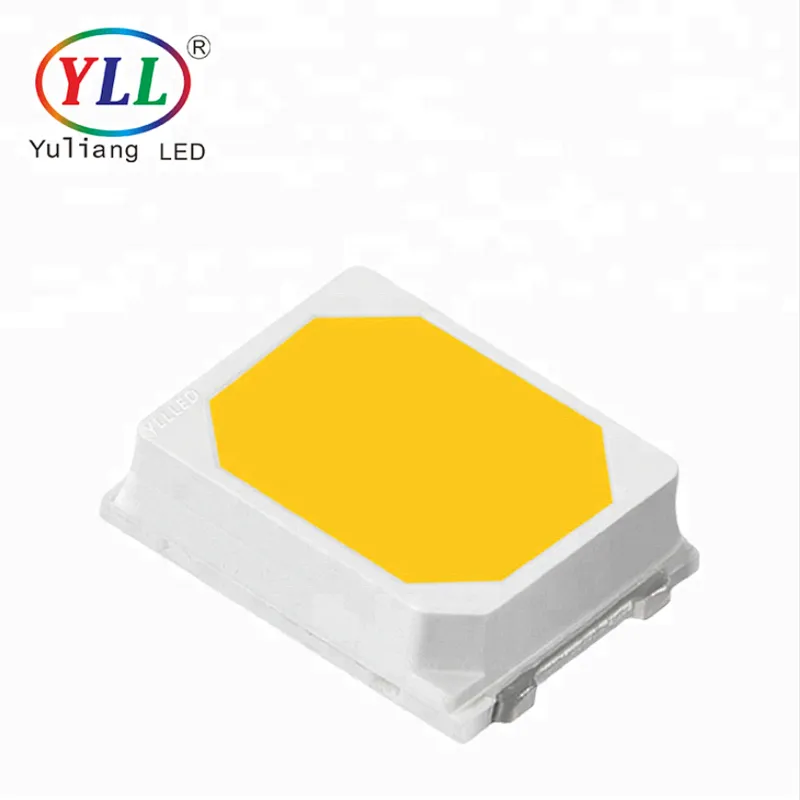

Top factory Yuliang direct sale pure white 6000-6500K smd 2835 led chip
-Thermo electric Separation
-Dead lamp-Proofing
-Sulfide-proofing
-moisture-proofing
-High brightness
-wide beam angle
-Low impendence
-Good heat disspitation
2835 parameter | ||||||
Product | Power | IV(mcd) | WL/CT | Chips Origin | Ra | Angle |
2835RED | 0.2w | 1500-2000mcd | 620-630nm | Taiwan |
| 120 |
2835RED | 0.2w | 2000-3000mcd | 620-630nm | Taiwan |
| 120 |
2835BLUE | 0.2w | 800-1000mcd | 465-470nm | Taiwan |
| 120 |
2835GREEN | 0.2w | 2500-3000mcd | 515-525nm | Taiwan |
| 120 |
2835WHITE | 0.2w | 26-28Lm | 6000-6500K | China | 85 | 120 |
2835WHITE | 0.2w | 24-26Lm | 6000-6500K | China | 85 | 120 |

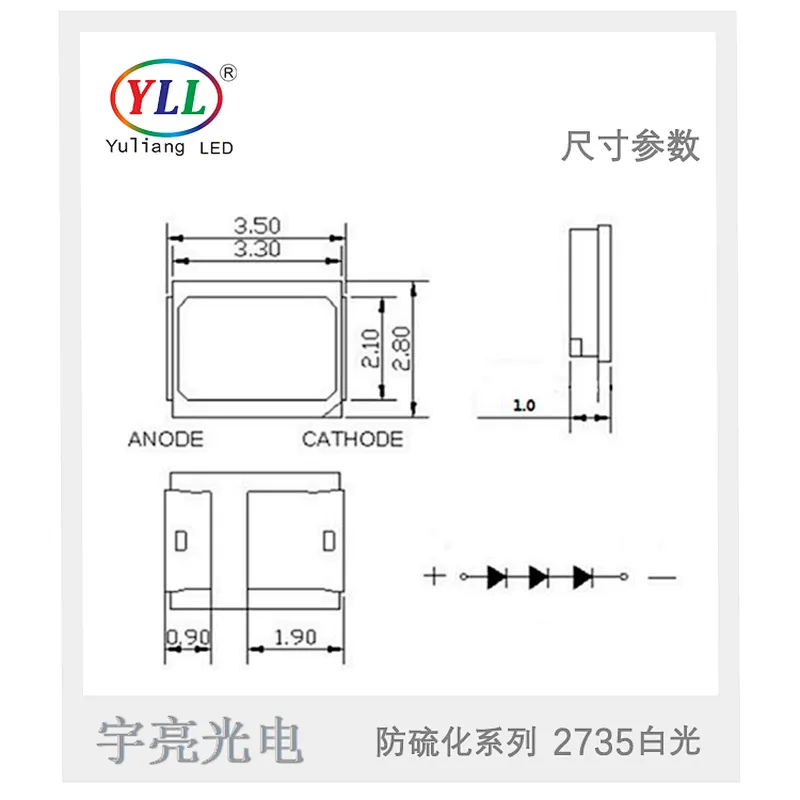

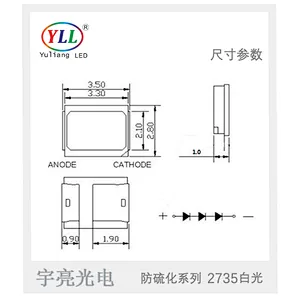

Package Dimensions:
Notes
All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Nowadays Led has been used to every kinds of industry and thousand billions of families.
Its energy saving and high brightness bring the revolution of lighting industry!
-LED car lamps
-LED panel light
-LED tube light
-LED bulb
-LED back light
Technology changes life,light changes the world !
WHY CHOOSE US?
We are committed to the development of durable, cost-effective products for 14 years ! Through our efforts we have got series of patents and certification!
1.Epistar proof document,Pass Energy Star LM80 and CE ROHS
2.Long Lifespan 100000hours
3.Low Light Decay
4.Enviornmental protection,No Mercury.
5.Energy Saving
6.Fast Response Time,response in dozens of ns,safely.
7.Small Volume, Light Weight,Shock-proofing
8.High Lumens,Light Source Stable ,Low Heat Dissipation
9.Easy to adjust the light and color temperature
We strictly control product quality
Raw Material inspection and quality status analysis to ensure raw materials Mission's requirements.
According raw material supplier quality record. Raw material supplier will be sifted out by our company if their yield rate under 93%.
Yuliang first applies the‘Double packaging’ technology to achieve the mass production of 3528 convex head series(50-60degree) and 5050 convex head series(160-180degree)in batches.
We also gain great honor and highly appreciated
Shenzhen Yuliang Optoelectronic Techology Co.,Ltd has successfully passed ISO9001:2008, and all products are available for CE-EMC,CE-LVD, ROHS,LM-80 Certification Testing.
After 14 years of development, we have stood in front of the led industry, we have a large number of stable customer resources, their support and trust about our products thanks to we never let them down , we get the consistently high praise !
Two-year Warranty
Return or replacement within two years if there have any defected product or malfunctioning product or broken product.
Exchange & Return Policy
1)The shipment cost should be taken by supplier if there have defected product or malfunctioning product or broken product within two years.Replacement will be sent to you in your next order if you don’t want to return.
2)0.3% free spare part for volume order,in the same time,we will give you replacement as compensation with next order if faulty product rate reach to 0.3%.
YLL Lighting is committed to creating high-quality ,affordable ,well-designed and efficient LED light that make it easy for customers to sell ,electricians to install and endusers to save energy .
