- Type:SMD LED
- Chip Material:InGaN
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Emitting Color:RGB
- Power:0.2W
- Luminous Intensity:R:600-800mcd G:1400-1600mcd B:300-500mcd
- Luminous Flux(lm):R:600-800mcd G:1400-1600mcd B:300-500mcd
- Optical Attenuation(%):3
- Power Dissipation:0.2
- Viewing Angle(°):120
- Color Rendering Index(Ra):0
- Color Temperature:R:620-630nm G:515-530nm B:460-470nm
- Operating Temperature(℃):-30 - 80
- Storage Temperature(℃):-40 - 80
- Brand Name:YLL

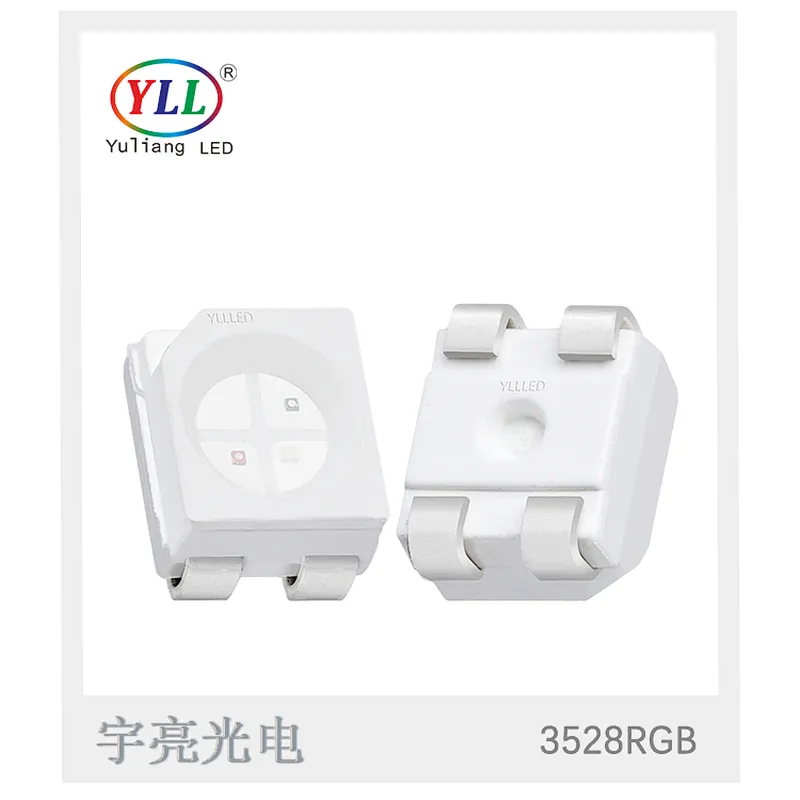

Taiwan Epistar chip 6 pin 3528 rgb smd led datasheet
| Product Type | 3528 |
| Power | 0.2w |
| Emitting Color | RGB |
| Voltage | R:2.0-2.4v G:3.0-3.4v B:3.0-3.4v |
| Wavelength | R:620-630nm G:515-530nm B:460-470nm |
| Brightness | R:600-800mcd G:1400-1600mcd B:300-500mcd |
| Current | R:20mAG:20mAB:20mA |
| Beam Angle | 120° |
| Life Span | 50000hours |
| Warranty | 2 years |
Feature:Anti-sulfuration,Widely application,High luminous efficiency

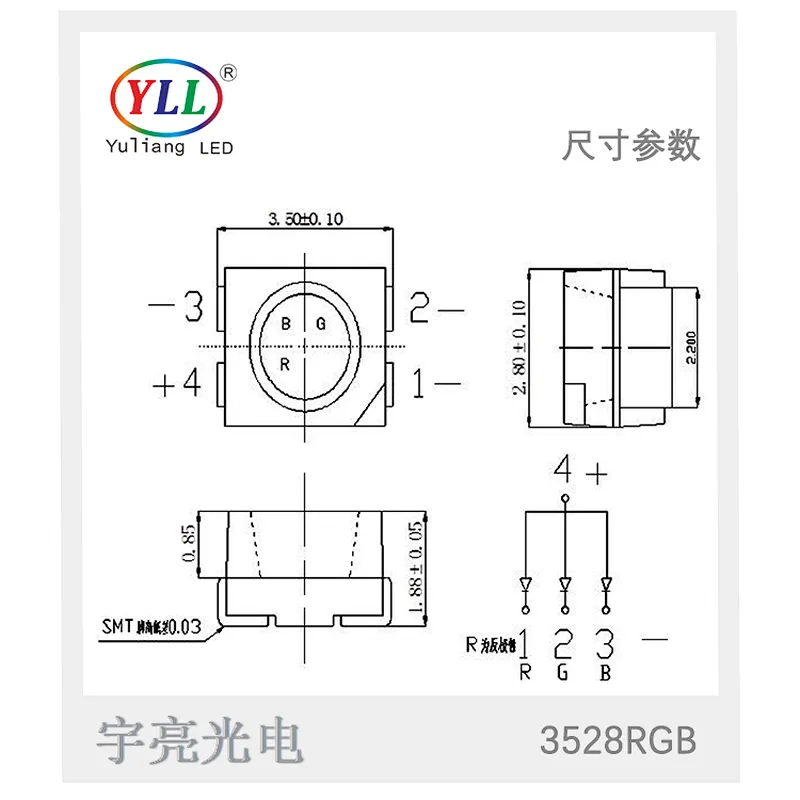

Package Dimensions:
Notes:
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package. Specifications are subject to change without notice.
Notes:
Luminous intensity is measured with a light sensor and filter combination that approximates the CIE (Commission International De L’Eclairage) eye-response curve.1/2 is the off-axis angle at which the luminous intensity is half the axial luminous and intensity.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.The IV guarantee should be added ±15%.
COLOR BIN LIMIT(IF=3×20mA)
Red
| Bin Code | Min(nm) | Max(nm) |
| A | 620 | 625 |
| B | 625 | 630 |
| Bin Code | Min(nm) | Max(nm) |
| A | 515 | 520 |
| B | 520 | 525 |
| C | 525 | 530 |
| Bin Code | Min(nm) | Max(nm) |
| A | 460 | 465 |
| B | 465 | 470 |

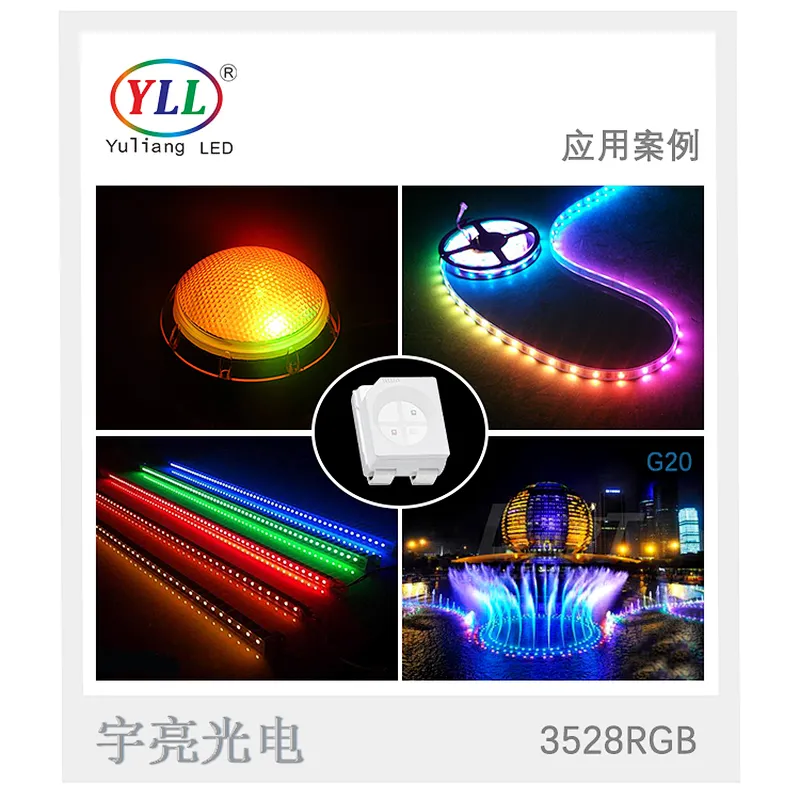

0.2w Epistar Chip 3528 RGB SMD LED can be used for outdoor point light source,fence tube,wall washer light,line lamp,home lighting,etc.
