- Type:SMD LED
- Chip Material:InGaN
- Emitting Color:Tri-Color(Red-Blue-Green)
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Power:0.2w
- Luminous Intensity:r:600-800mcd g:1400-1600mcd b:300-500mcd
- Viewing Angle(°):120
- Operating Temperature(℃):-40 - 85
- Storage Temperature(℃):0 - 30
- Brand Name:YLL
Product Description

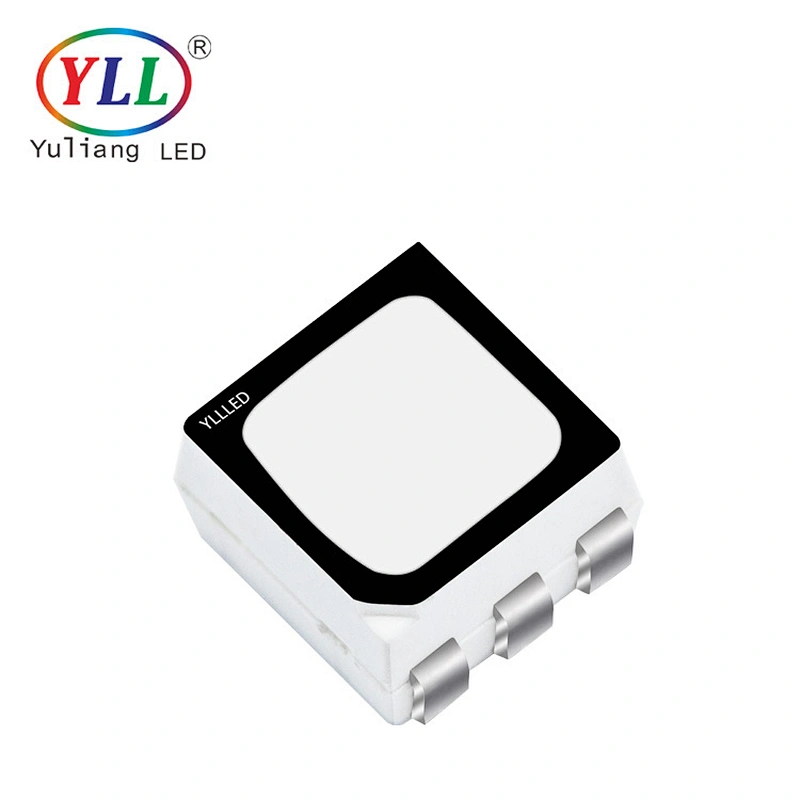

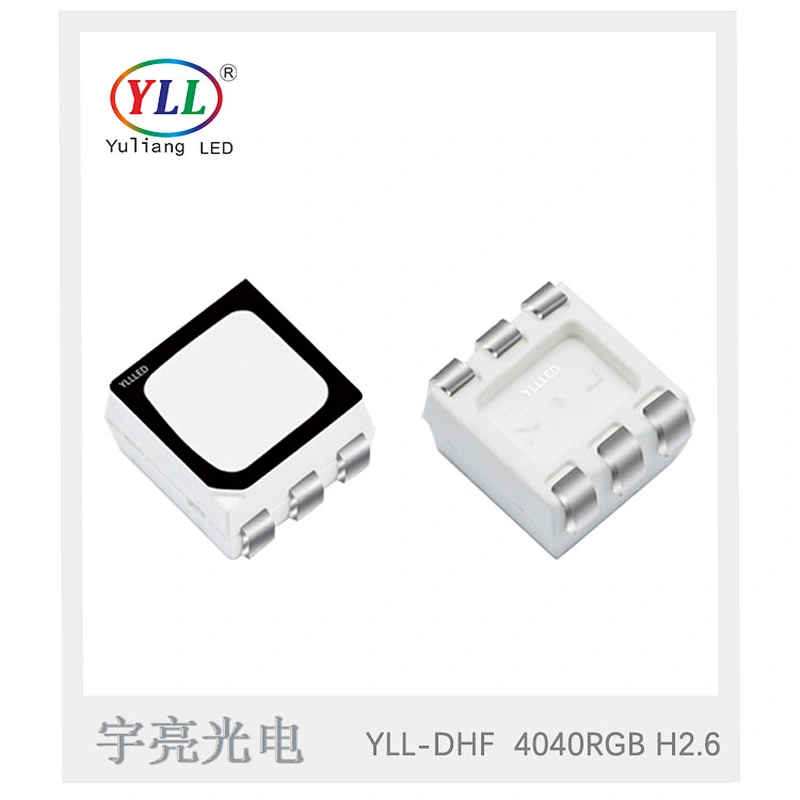

Super bright 0.2w epistar chip 4040 rgb smd led
Tech specs
Type : SMD LED
Model Number : YLL-4040 RGB (2.6H)
Power : 0.2W
Chip : Epistar
Viewing Angle : 120°
Emitting Color : RGB
Warranty : 2Years
Certification : EN62471, ROHS
Product | Color | VF(V) | WL/CT(nm/K) | IV(mcd/lm) | IF(mA) | Angle(°) |
4040RGB (2.6 H) EPISTAR | Red | 2.0-2.4 | 620-630 | 600-800 | 20 | 120 |
Green | 3.0-3.4 | 520-530 | 1400-1600 | 20 | 120 | |
Blue | 3.0-3.4 | 460-470 | 300-500 | 20 | 120 |
Features
-Surface waterproofing
-Anti-vulcanization
-Good heat dissipation
-Low light failure
Application
-Rigid and flexible strip
-LED module, linear light
-LED point light source
-Advertising sign light source
Apllications
Related Products
3014 smd led chip | 2835 smd led chip | 3528 rgb smd led chip | 5050 rgbw smd led chip |
Certifications
some certifications
LM-80
CE, RoSH
Our Company
Company Profile
1. Established in 2005, Shenzhen Yuliang Optoelectronic Co.,Ltd is specializing in R&D, production and sales of LEDs.
2. Our factory mainly produces super bright piranha series: red, yellow, orange, blue,green, purple, pink, white, warm white and SMD patch series: 3014 side view,3528,3535,5730,5050 smd led,etc.
3. With low light decay, anti-moisture, anti-deadlight, anti-sulfurization, waterproof and other prominent features, products are widely applied to LED auto lamp, outdoor lamp, indoor lamp, commercial lamp and LED advertising sign.
4. The products include 3 series: decorative light source, outdoor led light source and automotive led light source. Most of our customers are factories from Europe and America, while a few are traders and suppliers.
Our Advantages
R & D Strength
We have over 20 professional smd led engineers, independent encapsulation lab,can achieve high and low temperature cold and hot shock test, anti-vulcanization test, moistureproof test,constant temperature and humidity test,LM-80 Standard 6000H continuous light attenuation test,etc.Products have more than 30 patents.
Production Strength
14 years LED encapsulation experience,over 6000m, modern dust-free workshop, firstly bring out"three proofings"technology which can perfectly resolve the problems: high dead lamp rate, vulcanization, moisture absorption,etc, truly realize moistureproof, anti-vulcanization, prevent dead lamp.
Branded Chip
We strive to develop into a modern technology-based LED enterprise and maintain long-term cooperative relationships with such internationally renowned companies as Epistar, CREE, and OSRAM.
Team Show
Exhibition
Team activity
Instruction Manual
1. Material confirmation
Is the LED BIN rating of the feed matched? For example: voltage CIE BIN brightness and other parameters are the same level, the same level should be used together. Whether the positive and negative polarities meet the requirements, whether the different foot positions meet the requirements. If the same level of LED is not applied to the same item, its applicability should be evaluated first. (If the different voltage BINs are used together, the brightness may be different, and different CIE BINs may use the luminescent colors together to make a difference).
2. Preventive measures after opening the package
After unpacking, take the whole roll dehumidification measures as much as possible, and dehumidify the conditions: baking at 70 degrees for 4-12 hours. The dehumidified material should be used as soon as possible (within 24 hours). Remaining material should be sealed or placed in an environment with 10-40 degrees humidity and no more than 30% humidity.
3. Electrostatic Protection
Electrostatic protection LED is an electrostatic sensitive electronic device. Various measures should be taken to avoid static electricity. For example: Wear an electrostatic ring during use. All devices, equipment and instruments should be grounded. It is recommended to test the assembled LED product to check whether the LED is damaged by static electricity.
4. Cleaning
It is recommended that isopropyl alcohol be used to clean the LEDs. If using other solvents for cleaning, make sure that the solvent does not affect the epoxy, silicone, or stent silver layers. Ultrasonic cleaning is not recommended to avoid damage to the LED. If it is unavoidable, please perform a pre-test beforehand to confirm whether it has adverse effects on the LED or potential problems.
After-sale guarantee
Product guarantee
We using the original Taiwan Epistar and CREE chip
Quality assurance
All products are 2 years warranty and all products are strictly under controlled of our company's quality management system, and they are fully checked and shipped to ensure product quality.
Yuliang Promise
Yuliang promised to supply 1 BIN for long term and 3 days delivery samples.Small batch order can be completed within 5-7 days. Fast response to customer complains within 24 hours and handled a series of problems that the customer faced efficiently.
Sales network
Customer first, service priority. We have offices in Shanghai, Ningbo and Zhongshan, which can provide quality services to our surrounding customers.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 5-7 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
