- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:Y:588-592nm R:620-630NM
- Color Rendering Index(Ra):0
- Brand Name:Yuliang
- Model Number:YLL-CGXL-3528-smd
- Power Dissipation:0.1
- Luminous Flux(lm):500-800mcd
- Luminous Intensity:500-800mcd
- Storage Temperature(℃):0 - 40
- Optical Attenuation(%):0.3
- Viewing Angle(°):60
- Chip Material:AlGaInP
- Certification:CE
- Certification:RoHS
- Operating Temperature(℃):-20 - 40
- Power:0.1w
- Emitting Color:red or yellow

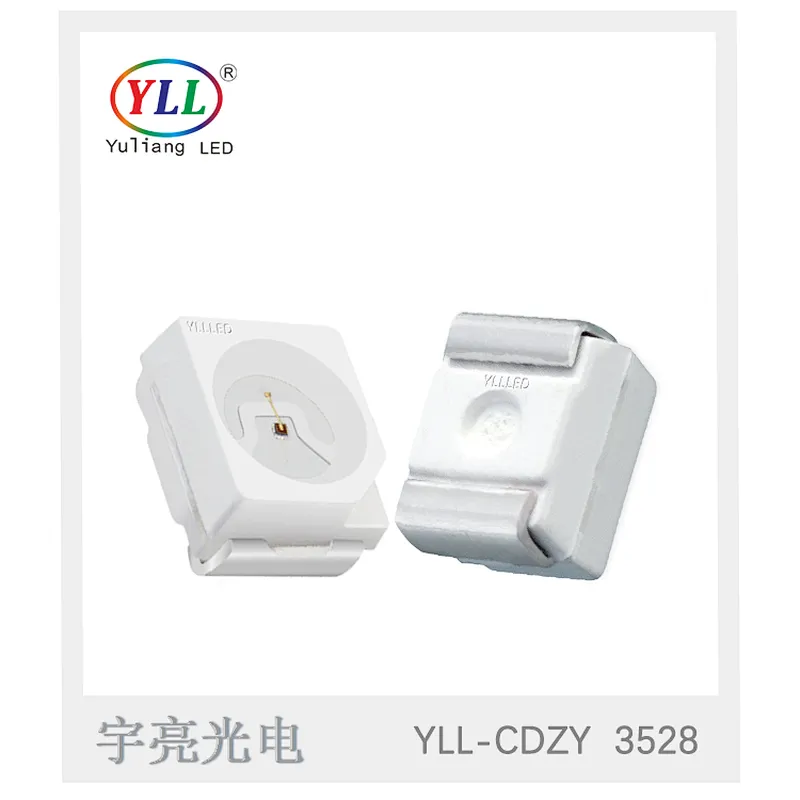

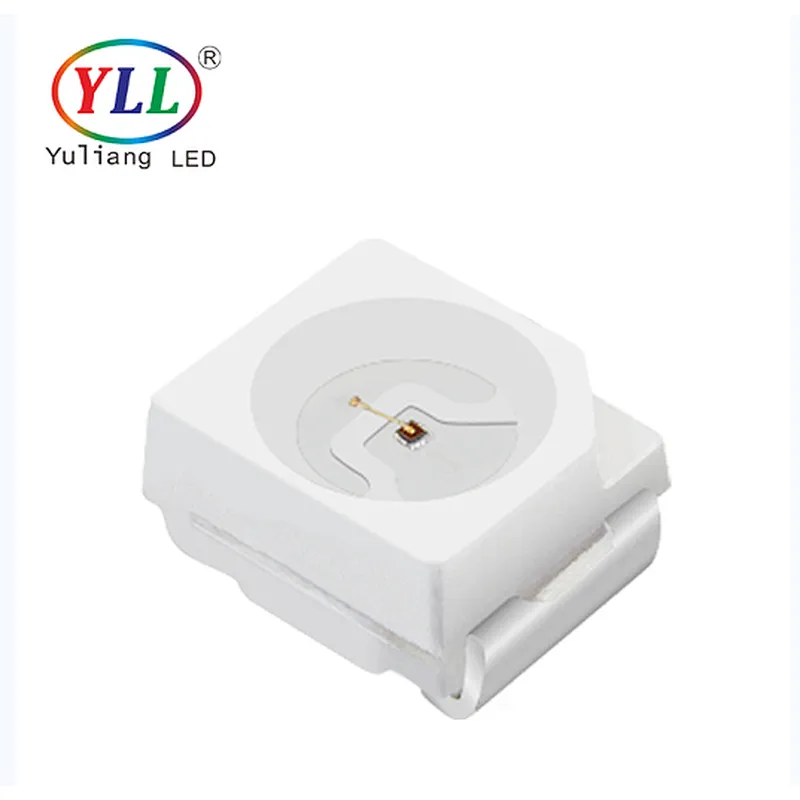

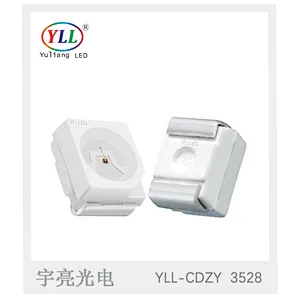

3528 red yellow double color smd led for car light
Notes

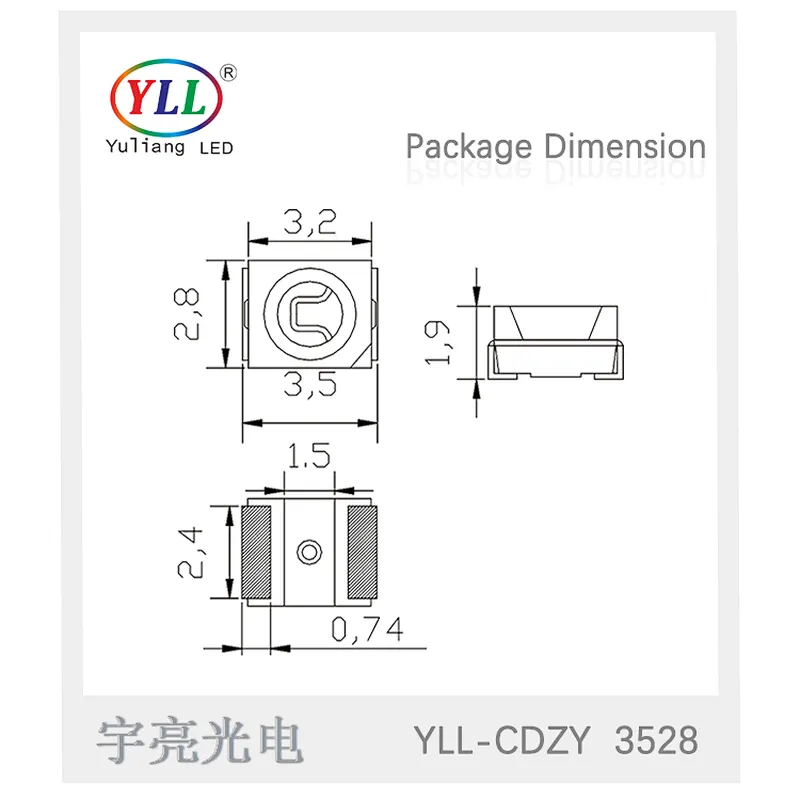

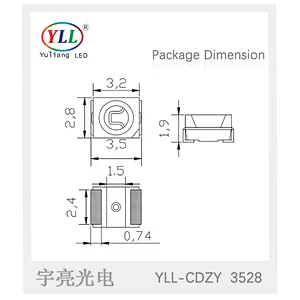

All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Electrical / Optical Characteristics at TA=25℃
Optical Characteristics
Product application:
Light Emitting SMD IS WIDELY APPLYING FOR FLEXIBLE STRIP LIGHT,HARD STRIP LIGHT,LED GUARDIANCE TUBE, POINT LIGHT SOURCE,LED MODULE,OUTDOOR LIGHTING,CAR LIGHTS ETC
