- Type:SMD LED
- Certification:CE
- Certification:RoHS
- Emitting Color:Warm White,Pure White,RGB
- Power:Other
- Luminous Flux(lm):21-23LM
- Viewing Angle(°):120
- Color Rendering Index(Ra):80
- Color Temperature:3000K-6000K- RGB
- Operating Temperature(℃):-20 - 40
- Storage Temperature(℃):0 - 40
- Brand Name:YLL

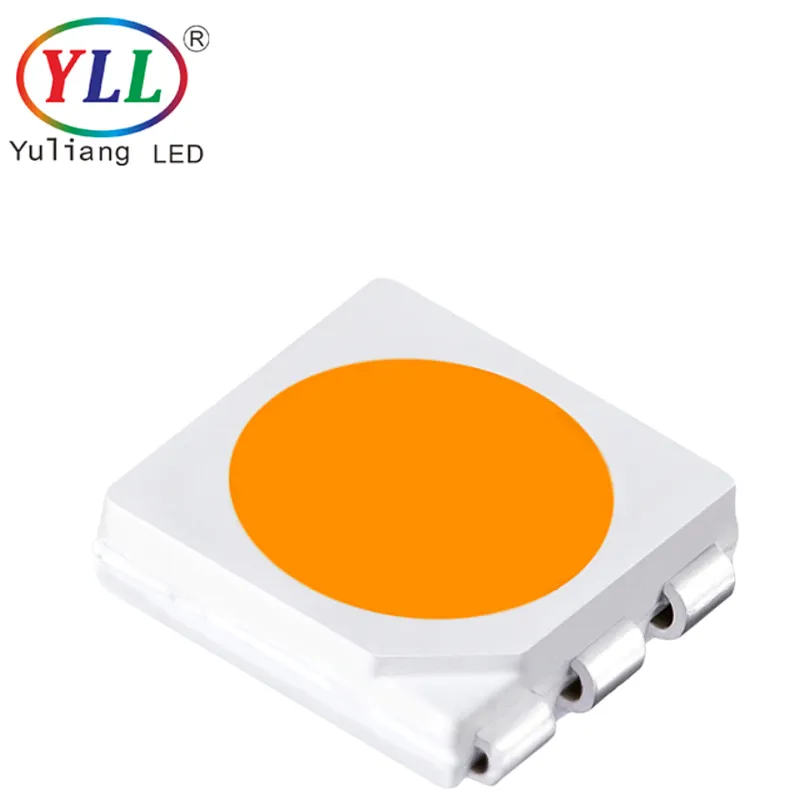

New Model light emitting diodes YLL 5060 5050 SMD LED chip
5060 RGB(0.2W)
R | G | B | IF(mA) | |||
IV(LM)
| WL(nm) | IV(LM) | WL(nm) | IV(LM) | WL(nm) | 20 |
1.52 | 620.6 | 5.13 | 523.3 | 1.22 | 461.6 | |
1.90 | 620.3 | 5.79 | 525.4 | 1.41 | 465.2 | |
1.96 | 620.5 | 5.80 | 525.5 | 1.38 | 465.3 | |
1.94 | 620.4 | 5.41 | 525.7 | 1.42 | 465.6 | |
5060 Warm White
3000K (Real Test SDCM<5) | X | Y | CCT | LM | RA | VF |
0.4419 | 0.4059 | 2934 | 21.04 | 81 | 3.10 | |
0.4367 | 0.4029 | 2994 | 20.91 | 82 | 3.14 | |
0.4365 | 0.4036 | 3002 | 21.24 | 81 | 3.11 | |
0.4410 | 0.4042 | 2932 | 21.42 | 82 | 3.09 |
5060 Pure White
6000K (Real Test SDCM<5) | X | Y | CCT | LM | RA | VF |
0.3158 | 0.3319 | 6320 | 22.46 | 81 | 3.14 | |
0.3145 | 0.3321 | 6385 | 22.91 | 81 | 3.06 | |
0.3187 | 0.3359 | 6150 | 23.09 | 80 | 3.01 | |
0.3121 | 0.3263 | 6560 | 22.36 | 81 | 3.20 |
Certificate | CE, ROHS,LM80 |
Application | LED Strip Light,LED Tube,LED Panel Light,LED For Car Etc |
Inside packing size | 1002PCS/BAG |
Outside packing size | 12x12x2cm |
Pieces per carton | 46.5*30.5*42CM (76K) |

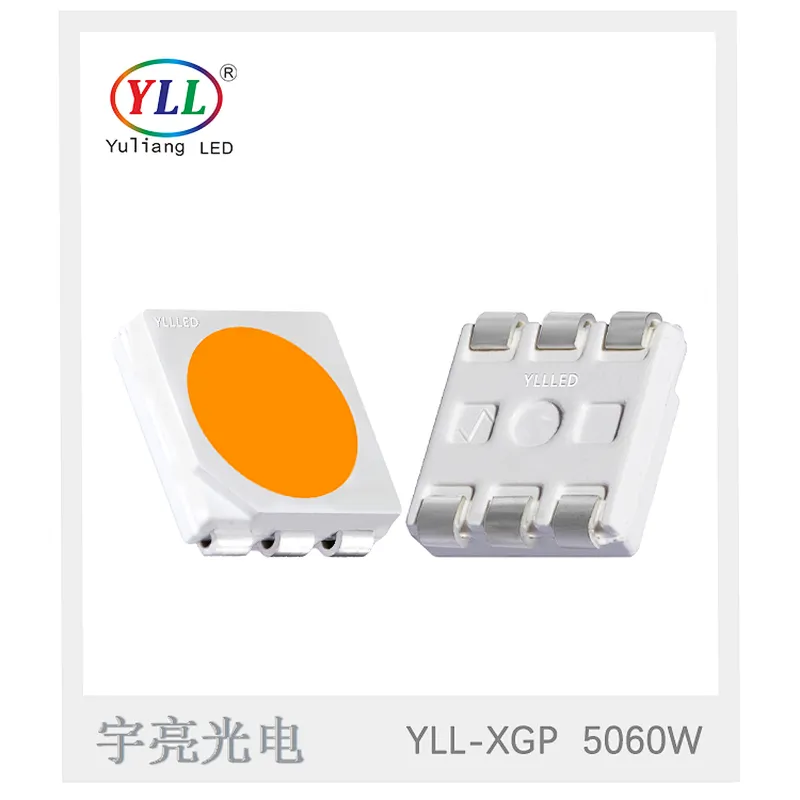

Product Display
Main Features
Moisture-Proof
Dead lamp-proof
Sulfide-proof
Medium and small power
High Brightness
Low Impedance
Good head dissipation
advantages
1.Epistar proof document Original, En Eu62471 approval
2.Long Lifespan 100000hours
3.Low Light Decay
4.Enviornmental protection,No Mercury
5.Energy saving
6.Fast Response Time,Rsponse in dozens of ns,safely.
7.Small Volume,Light Weight,Shock-proofing
8.High Lumens, Stable Light Source,Low heat dissipation
9.Easy to adjust the light and color temperature
10.Imported copper bracket,pure golden wire.

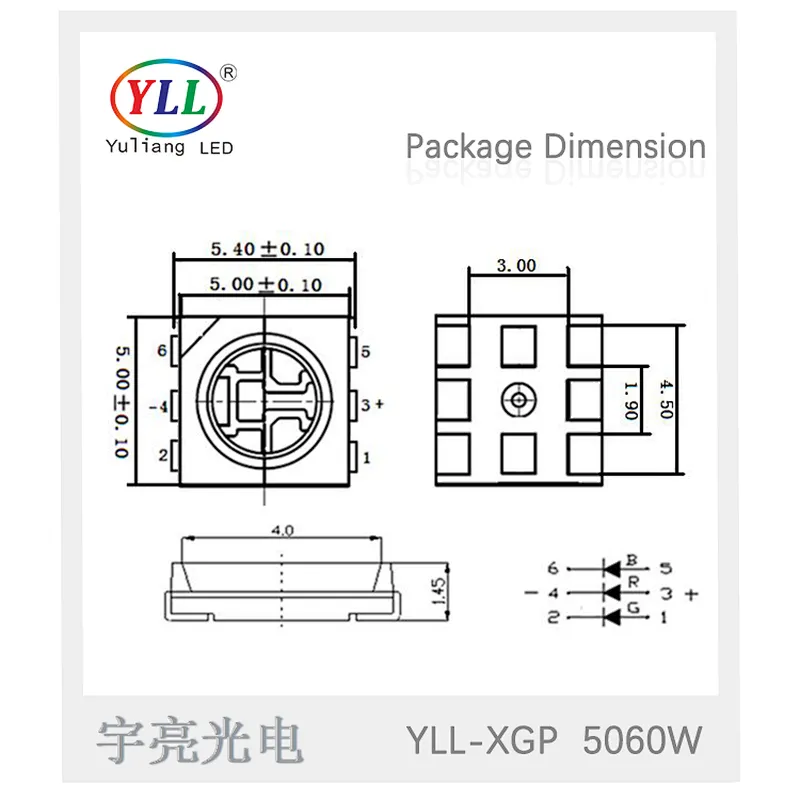

Package Dimensions
Product Application
Yuliang LED 5060 SMD is widely applying for LED Strip Light,LED Tube,LED Panel light,LED For Car, LED Bulb etc.
CERTIFICATIONS:
Shenzhen Yuliang Optoelectronic Techology Co.,Ltd has successfully passed ISO9001:2008, and all products are available for CE-EMC,CE-LVD, ROHS,LM-80 Certification Testing.
SHENZHEN YULIANG OPTOELECTRONIC TECHNOLOGY CO,.LTD:
National Hi-Tech Enterprise
Ten years Focused on SMD LED Package
Has a full set of LED Package Experimental Independent laboratory
Auto Lights/ Outdoor Lighting Project Light Source priority partnership
Pass U.S.Energy Star LM-80/ EU EN62471
