- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:R:620-630nm
- Color Rendering Index(Ra):80
- Brand Name:Yuliang
- Model Number:3014
- Power Dissipation:0.06
- Power:0.06W
- Luminous Flux(lm):600-800mcd
- Luminous Intensity:600-800mcd
- Storage Temperature(℃):0 - 40
- Optical Attenuation(%):0.02
- Viewing Angle(°):120
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Emitting Color:Red
- Operating Temperature(℃):-20 - 40

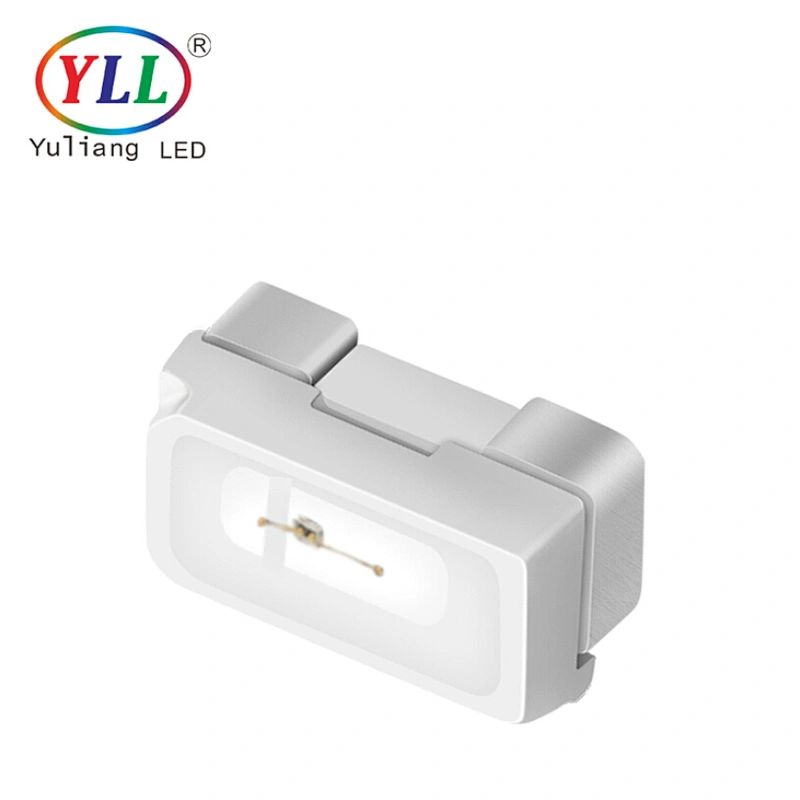

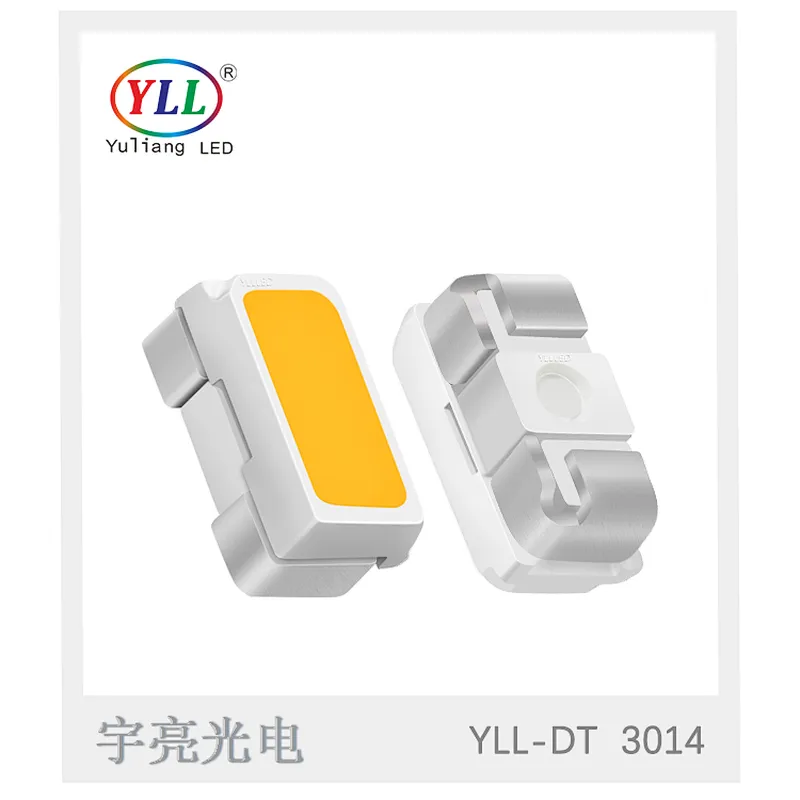

LM80 Epistar Chip 0.1W 0.2w red 3014 smd led datasheet
Product data | |
Emitting Color | red |
Wavelength | 600-800mcd |
Luminous flux | 600-800mcd |
View Angle | 120degree |
Voltage | 2.0-2.4V |
Reverse Voltage | 5V |
Current | 20mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
Feature | |
* Medium and small power, high brightness *light emitting angle *low impedance, fast heat dissipation
| |
Application | |
*LED Lighting *LED strip
*Consumer electronics products, toys
*LED back light source
| |
Notes

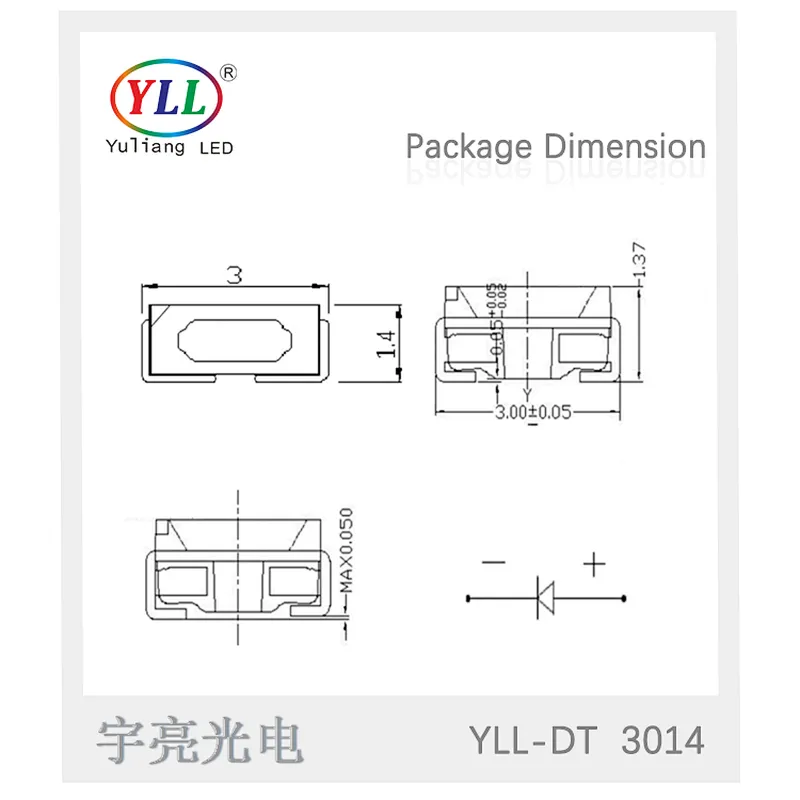

All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Electrical / Optical Characteristics at TA=25℃
Notes
. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE (Commission International De L’Eclairage) eye-response curve.1/2 is the off-axis angle at which the luminous intensity is half the axial luminous and intensity.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.The IV guarantee should be added ±15%.
Optical Characteristics
