- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:R:620-630nm G:520-530nm B:460-470nm
- Color Rendering Index(Ra):0
- Brand Name:YLL
- Model Number:YLL-IC 5050 RGBW
- Power Dissipation:0.2
- Luminous Flux(lm):r:2-3lm g:5-6lm b:1-3lm
- Luminous Intensity:r:600-800mcd g:1400-1600mcd b:300-500mcd
- Storage Temperature(℃):-50 - 150
- Optical Attenuation(%):0.3
- Viewing Angle(°):120
- Certification:CE
- Certification:RoHS
- Operating Temperature(℃):-40 - 85
- Power:0.2w
- Chip Material:Epistar
- Emitting Color:red grren blue
Basic information
Hot sales! Free samples ws2812b IC 5050 smd rgb LED chip.
Product Description

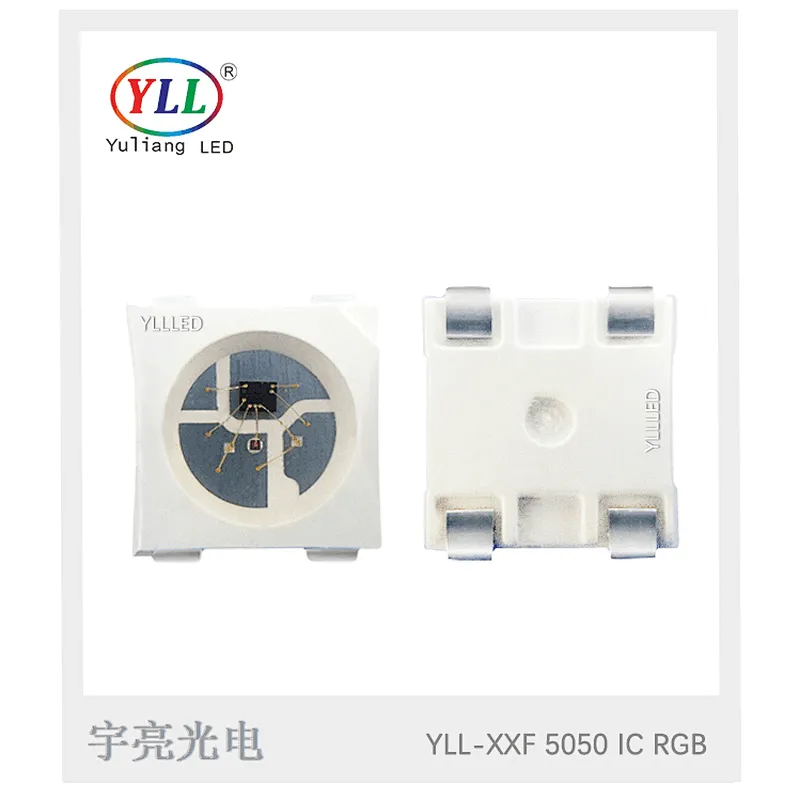

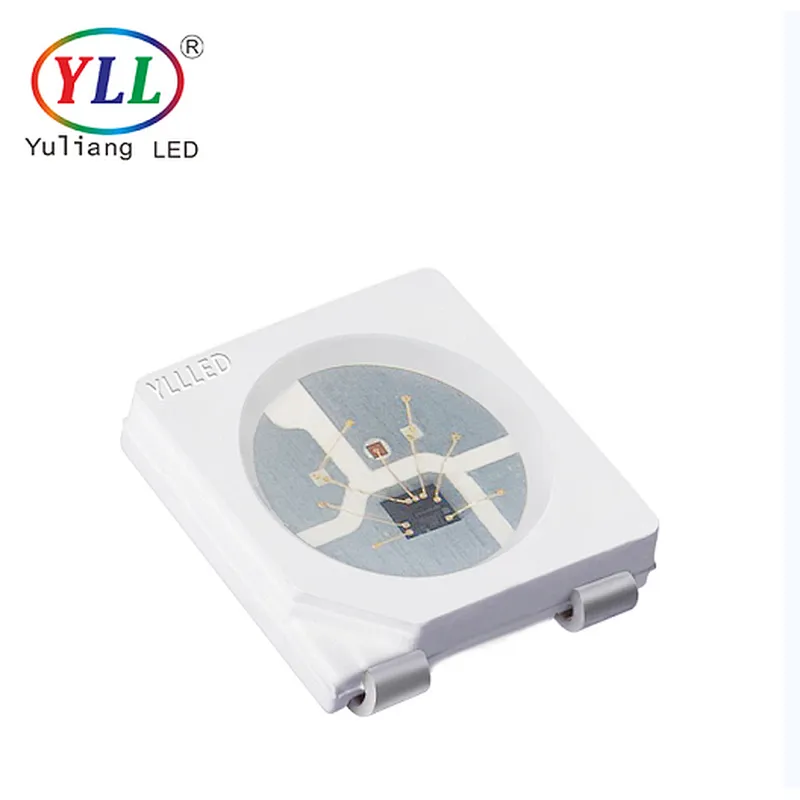

SK6812 dream color 5050 rgb SMD LED chip with epistar led chip.

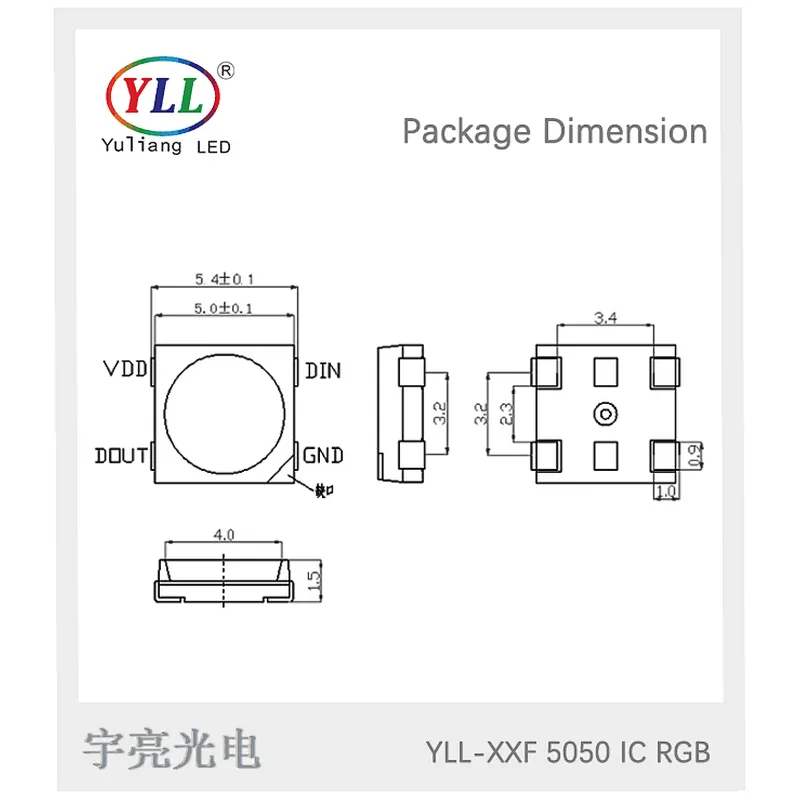

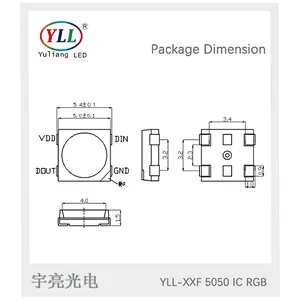

size:5.0*5.0*1.5mm
1.High Lumens Output & Low Brightness Decay
2.Stable Performance & Great CCT Inity.
3.Wid Color Temperature Range
4.Taiwan Epistar, CREE chips
Brand Chip
Yuliang RGB LED smd 5050 use Epistar CREE brand LED diode, high lumen, strong anti-static ability, strong anti-attenuation ability, good consistency and not dead light.
99.99%pure gold wire
Gold wire has the advantages of high conductivity, good thermal conductivity, corrosion resistance, good toughness and good chemical stability.
Gold wire has the advantages of high conductivity, good thermal conductivity, corrosion resistance, good toughness and good chemical stability.
sophisticated equipment
Technical operators, first-class equipment in the industry, ensure the quality of smd led, better brand imported welding wire equipment,.
improve efficiency, reduce the defective rate.
Splitting
Import machines from Japan, high speed splitting,about 60K/hrs.Intelligent full-point identification and positioning system can recognize stents and control the amount of glue, high speed.stability, maneuverability, and durability, which ensures precision and density.
Sorting &Typing
0.1V 0.2V 0.5V sorting, The vibration disc is used to send the material, equipped with a large capacity storage device, and the SMD LED electrical parameters are tested. It can arrange the polarity automatically, automatically select and eliminate the unqualified products, and also cooperate with the workers to control the quality, so as to make each SMD LED color sorting.
About the product
1. The 5050 smd led integrate high-quality externally controlled single-line cascaded constant current IC and high-quality RGB LED chips in a small and compact package.
2. Single-line data transmission, infinite cascade.
3.High constant current accuracy, on-chip error <1.5%, inter-chip error <3%.
Apllications
Related Products
Certifications
some certifications
LM-80
CE, RoSH
Our Company
Shenzhen yuliang Technology Co.,Ltd
1.Perfect production line to guarantee perfect quality.
2.Own the LED special dust-free, anti-static workshop.
3.Formed a number of world-class United States ASM automatic machine crystalline solid,
4.ASM automatic soldering machines, H120 automatic LED light colour scanner make sure the quality
Our services
1.Your related inquiry will be replied in 24 hours.
2.Your information for us will be protected strictly.
3.Customized package and product available.
4.Free samples are availale,3 years guarantee time.
5.After sales service stay a super position.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 5-7 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
