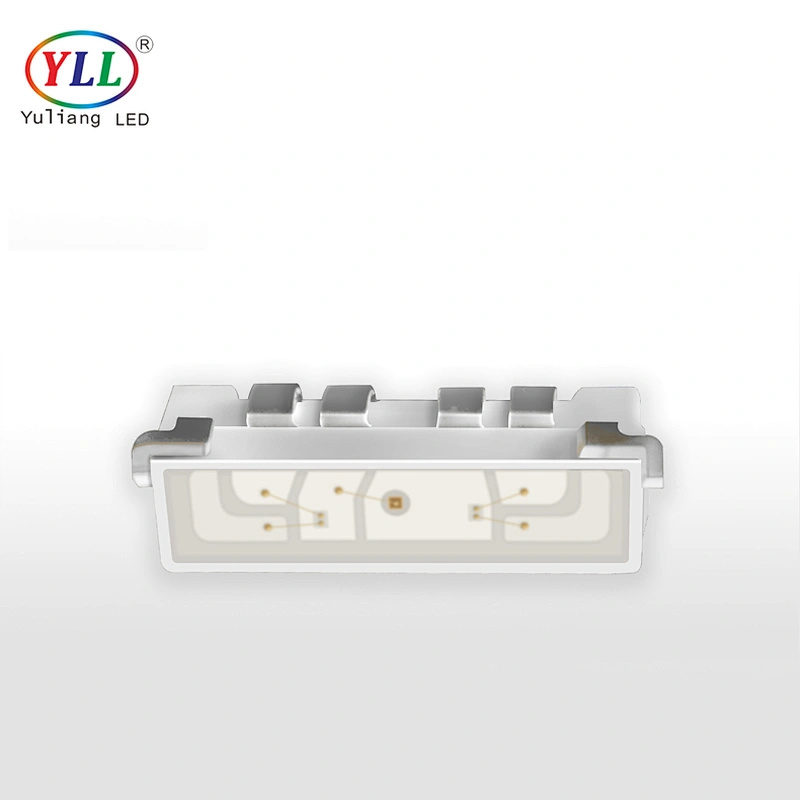

Epistar chip gold wire plcc 6 0.2w side view 4713 rgb smd led

Epistar chip gold wire plcc 6 0.2w side view 4713 rgb smd led

Model NO.: side view 4713 rgb smd led
Price:: USD 0.03-0.06 / pieces
Delivery: FOB
Minimum order quantity: 2500 pieces
Supply Ability: 10000000 pieces / Week
Country of Origin: SHENZHEN

Quantity:

Product Description

Type:SMD LED
Chip Material:InGaN
Emitting Color:Tri-Color(Red-Blue-Green)
Place of Origin:CN;GUA
Certification:CE
Certification:RoHS
Power:0.2W
Luminous Intensity:R:500-700 G:1000-1500 B:200-400mcd
Optical Attenuation(%):0.1
Power Dissipation:0.1
Viewing Angle(°):120
Operating Temperature(℃):-30 - 85
Storage Temperature(℃):0 - 30
Brand Name:YLL

Product Description

Epistar chip gold wire plcc 6 0.2w side view 4713 rgb smd led

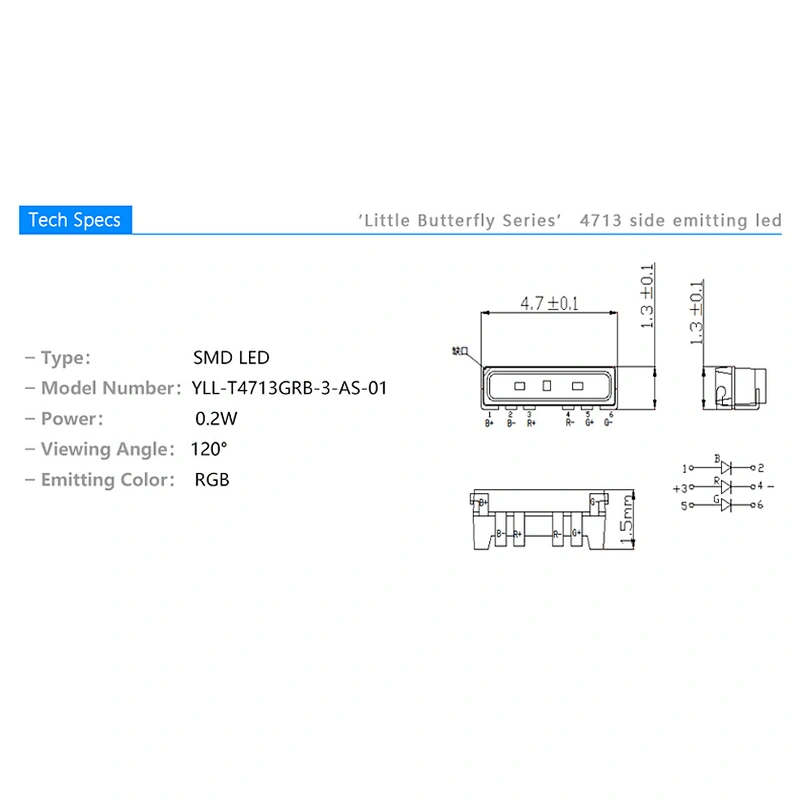

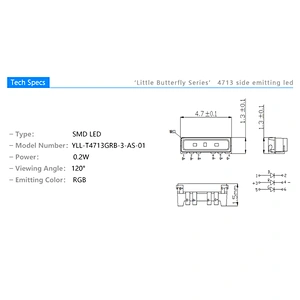

Tech Specs

Type: SIDE VIEW SMD LED Model Number : YLL-T4713RGB-3-AS- 01

Power : 0.2W Chip : Epistar, CREE Viewing Angle : 120° Life span : 50000H Warranty : 2Years Emitting Color : Tri-color RGB Certification : EN62471, CE, SDS, SGS, ROHS

Advantages

1. Side emitting RGB 2. Gold wire, copper stand 3. Taiwan epistar chip, CREE chip 4. 6pin for led strip DC12V, 24V compare with 4pin for DC5V 5. Led strip 120leds/M, 6-8mm width, H1.5mm Aanti-bending

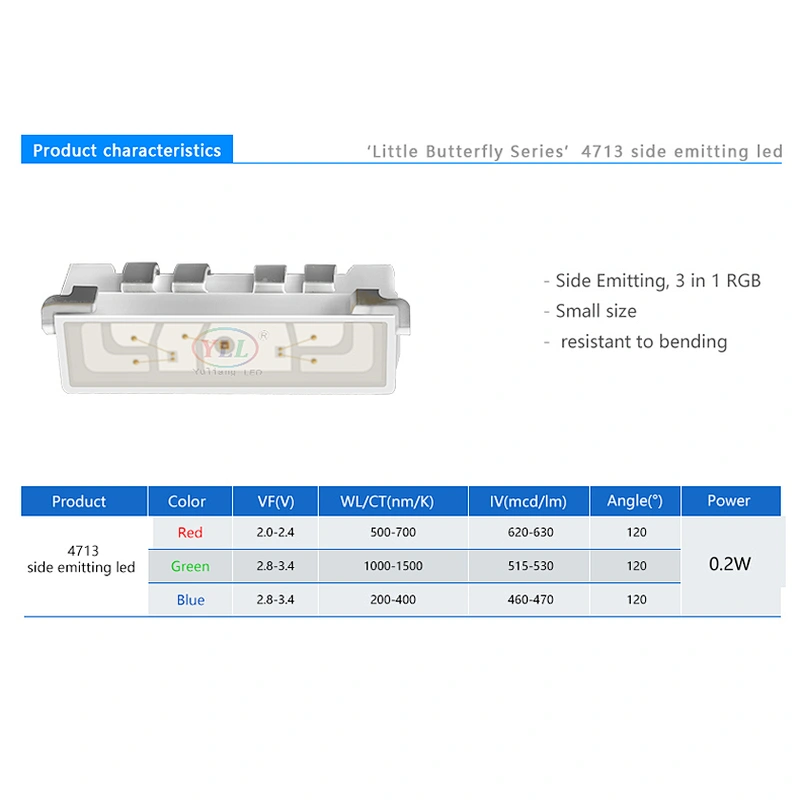

Product	Color	VF(V)	Wavelength	IV(MCD)	IF(mA)	Angle(°）
4713 side emitting RGB 0.2W	Red	2.0-2.4	620-630	500-700	20	120
		Green	2.8-3.4	515-530	1000-1500	20	120
		Blue	2.8-3.4	460-470	200-400	20	120

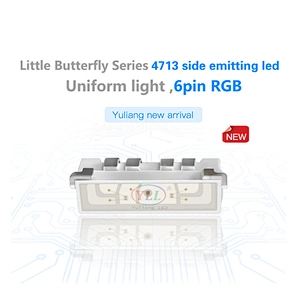

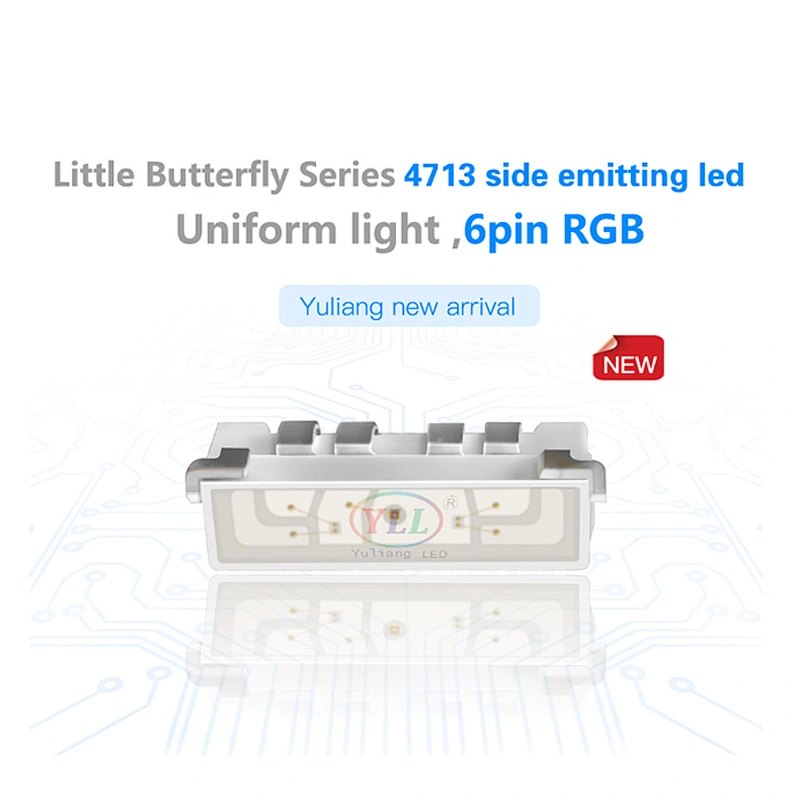

Features:

1. Side emitting, 3 in 1 RGB

2. Small size, small power

3. Resistant to bending

Applications:

1. Smart lights 2. LED light bars 3. LED decorative lights 4.Car interior decoration 5. LED strips, indicator 6. Led backlight, Dark groove decoration 7. 3C Series products: Mouse, keyboard, earphone...

Application

Certifications

Our company strictly operates in accordance with ISO9001:2008 quality management system. The white light area strictly complies with the American Energy Star IES LM-80 standard. Many products have passed the US Energy Star IES LM-80 test, ROHS, REACH, EN62471 certification. Our company always adhere to the quality policy of “meeting customer needs with high quality, continuous improvement and innovation.”, and continuously develops and launches LED series products illuminate the universe.

Company Profile

Company profile

Shenzhen Yuliang Optoelectronic Co., Ltd, was established in 2005. It is a high-tech enterprise specializing in R&D, production and sales of LEDs. In 2016, it was selected as one of the top ten innovative brand companies for lighting designers.

Factory mainly producing super bright piranha series: red, yellow, orange, blue, green, purple, pink, white, warm white and SMD patch series: 3014 side view, 3528, 3535, 4040, 5050 and other patches SMD LED. Products with low lighting decay, anti-moisture, anti-sulfurization, waterproof, anti-deadlight and other prominent features, are widely used in Automotive LED lights, outdoor landscape lighting, interior lighting, commercial lighting, LED advertising logo light.

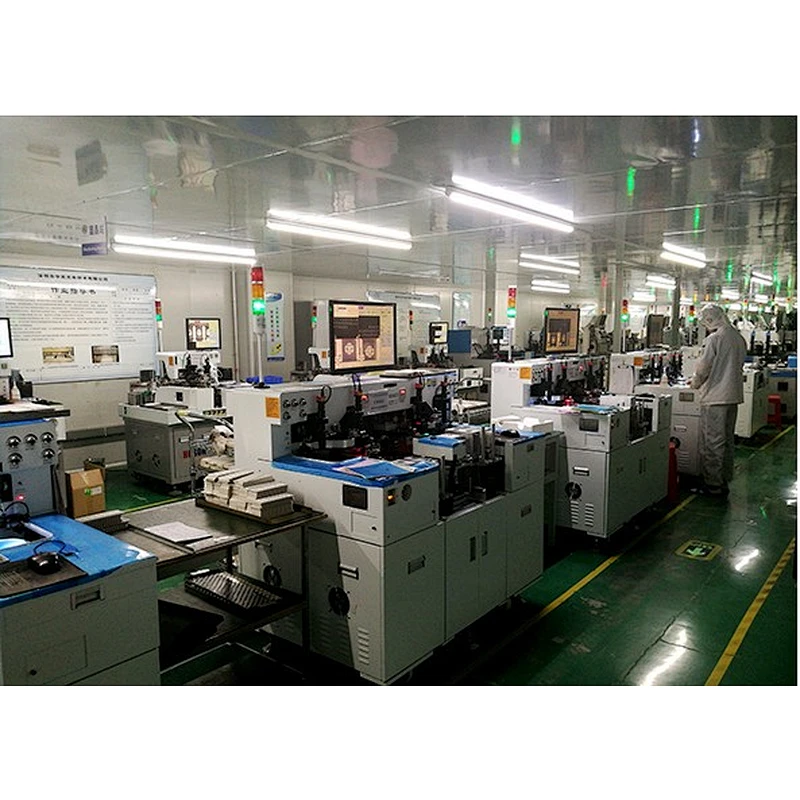

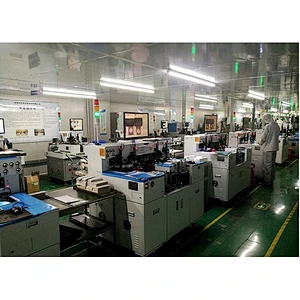

Our factory has more than 8,000 sm² 100,000 level dust-free LED packaging workshops, more than 30 engineering technical and senior management personnel with over 10 years experience in LED industry packaging. The raw materials used in the products are mainly imported from Japan, Unites States, ans Taiwan.

Equipped with automatic die bonder machine, automatic wire bonding machine, automatic sealing machine, constant temperature and humidity machine, salt spray test machine and other advanced equipment.

The products include 3 series: decorative light source, outdoor led light source and automotive led light source. Most of our customers are factories from Europe and America, while a few are traders and suppliers.

Company exhibition in Guangzhou lighting fair in June, 2017.

Our Advantages

R & D Strength

We have over 20 professional smd led engineers, independent encapsulation lab,can achieve high and low temperature cold and hot shock test, anti-vulcanization test, moistureproof test,constant temperature and humidity test,LM-80 Standard 6000H continuous light attenuation test,etc.Products have more than 30 patents.

Production Strength

14 years LED encapsulation experience,over 6000m, modern dust-free workshop, firstly bring out"three proofings"technology which can perfectly resolve the problems: high dead lamp rate, vulcanization, moisture absorption,etc, truly realize moistureproof, anti-vulcanization, prevent dead lamp.

Branded Chip

We strive to develop into a modern technology-based LED enterprise and maintain long-term cooperative relationships with such internationally renowned companies as Epistar, CREE, and OSRAM.

Instruction Manual

1. Material confirmation
Is the LED BIN rating of the feed matched? For example: voltage CIE BIN brightness and other parameters are the same level, the same level should be used together. Whether the positive and negative polarities meet the requirements, whether the different foot positions meet the requirements. If the same level of LED is not applied to the same item, its applicability should be evaluated first. (If the different voltage BINs are used together, the brightness may be different, and different CIE BINs may use the luminescent colors together to make a difference).

2. Preventive measures after opening the package
After unpacking, take the whole roll dehumidification measures as much as possible, and dehumidify the conditions: baking at 70 degrees for 4-12 hours. The dehumidified material should be used as soon as possible (within 24 hours). Remaining material should be sealed or placed in an environment with 10-40 degrees humidity and no more than 30% humidity.

3. Electrostatic Protection
Electrostatic protection LED is an electrostatic sensitive electronic device. Various measures should be taken to avoid static electricity. For example: Wear an electrostatic ring during use. All devices, equipment and instruments should be grounded. It is recommended to test the assembled LED product to check whether the LED is damaged by static electricity.

4. Cleaning
It is recommended that isopropyl alcohol be used to clean the LEDs. If using other solvents for cleaning, make sure that the solvent does not affect the epoxy, silicone, or stent silver layers. Ultrasonic cleaning is not recommended to avoid damage to the LED. If it is unavoidable, please perform a pre-test beforehand to confirm whether it has adverse effects on the LED or potential problems.
