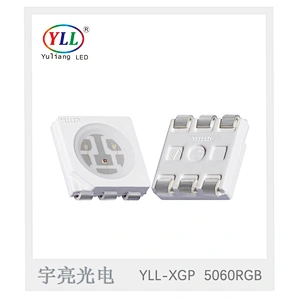

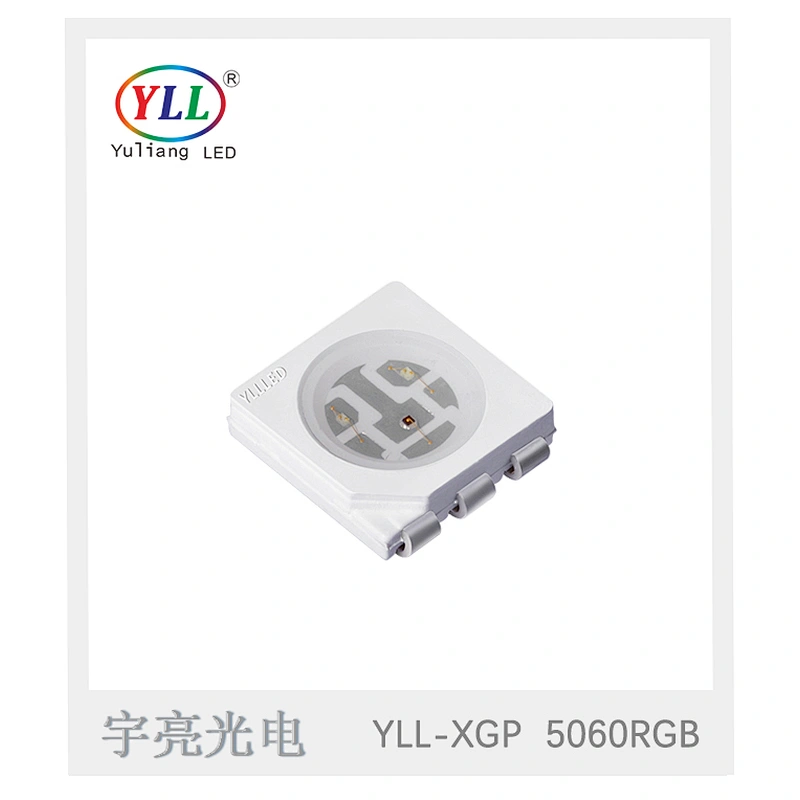

Datasheet 60mA PLCC-6 0.2W 5050 SMD LED R/G/B/Y/W/RGB Color

Datasheet 60mA PLCC-6 0.2W 5050 SMD LED R/G/B/Y/W/RGB Color

Model NO.: YLL-T50RGB-3-CJ-01
Price:: USD 0.02-0.02 / pieces
Delivery: FOB
Minimum order quantity: 1000 pieces
Supply Ability: 90000000 pieces / Month
Country of Origin: shenzhen
Stock Time: 2-3days after payment Days

Quantity:

Product Description

Type:SMD LED
Place of Origin:CN;GUA
Color Temperature:R:620-630nm G515-525nm B465-470nm
Color Rendering Index(Ra):80
Brand Name:YLL
Model Number:YLL-T50RGB-3-CJ-01
Power Dissipation:0.16
Luminous Flux(lm):R:500-700, G:1400-1600 B:300-500
Luminous Intensity:R:500-700, G:1400-1600 B:300-500
Storage Temperature(℃):0 - 40
Optical Attenuation(%):0.5
Viewing Angle(°):120
Chip Material:InGaN
Certification:CE
Certification:RoHS
Operating Temperature(℃):-30 - 80
Power:0.2W
Emitting Color:RGB

Datasheet 60mA PLCC-6 0.2W 5050 SMD LED R/G/B/Y/W/RGB Color

Product data
Emitting Color	Red Green Blue
Wavelength	R:620-630nm,G:515-525nm,B:465-470nm
Luminous flux	R:500-700, G:1400-1600 B:300-500
CRI	80Ra
View Angle	120degree
Voltage	R:2.0-2.4V,G;3.0-3.4V,B:3.0-3.4V
Current	60mA
Lifespan	50000 hours
Warranty	2 Years
Size	*5.05.01.45mm*
Feature
-Moisture-Proofing -Dead Lamp-Proofing -Sulfide-Proofing -Good Heat Dissipation -Low Light Decay
Application
-Flexible and Hard Strip Light -Guardrail Tube -Point Light Source -Module -LED Display

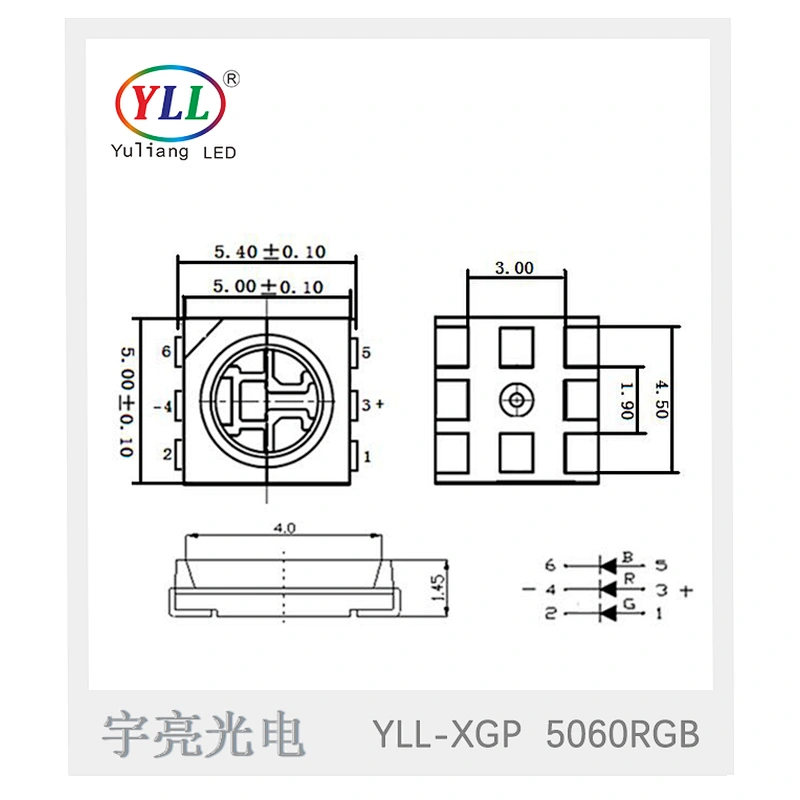

Notes

All dimensions are in millimeters (inches).

Tolerance is ± 0.25mm (.010”) unless otherwise noted.

Protruded resin under flange is 1.0mm(.04”) max.

Lead spacing is measured where the leads emerge from the package.

Specifications are subject to change without notice.

Absolute Maximum Ratings at TA=25℃

Electrical / Optical Characteristics at TA=25℃

Optical Characteristics
