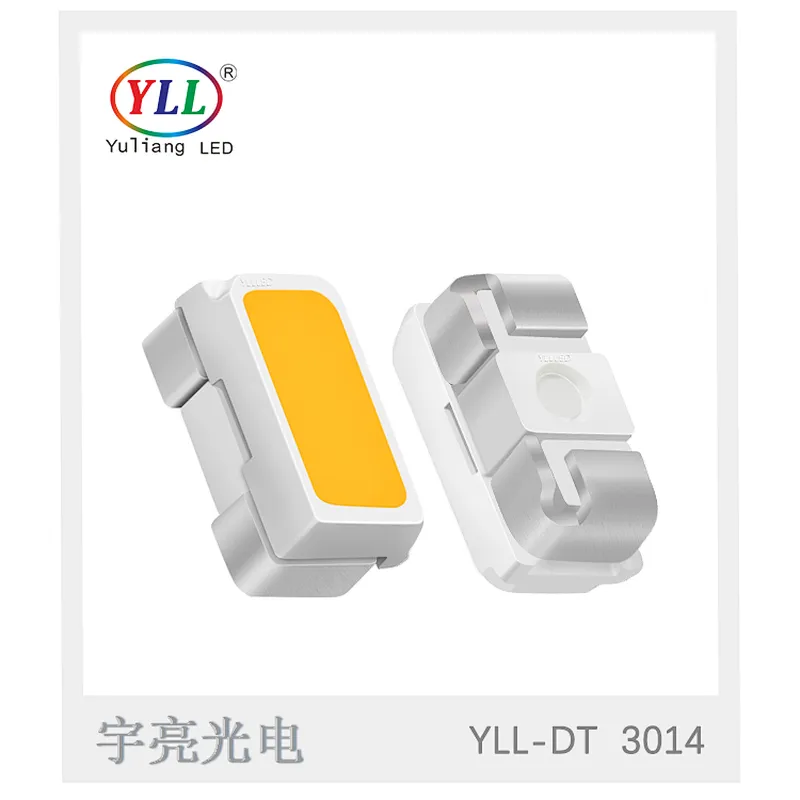

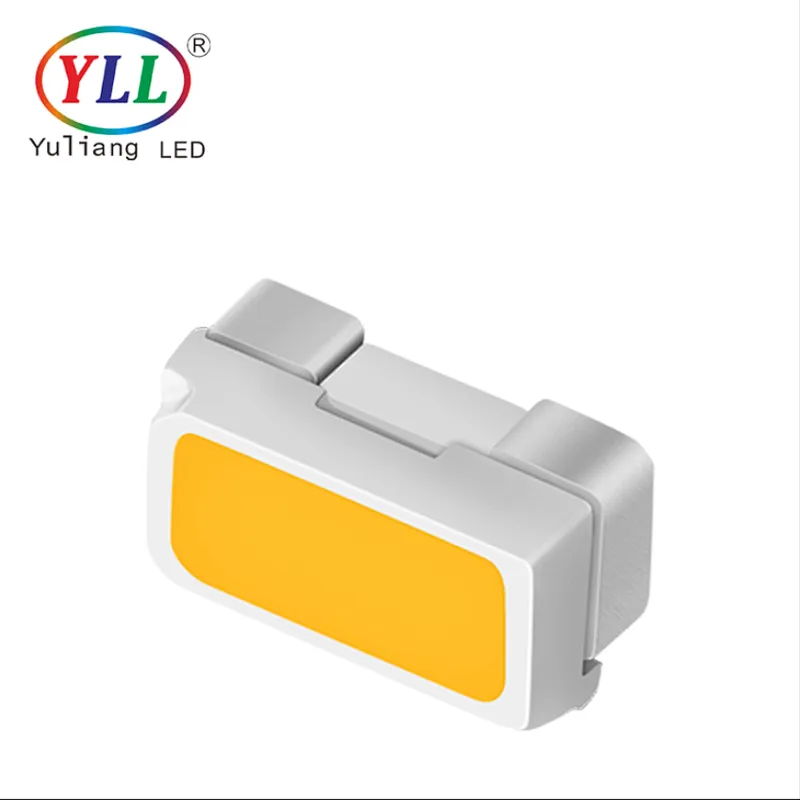

3014 3V 30mA 0.1w white smd led chip

Quantity:

3014SMD LED G4 SMD LED
Product data
Item	3014SMD LED G4 SMD LED
Emitting Color	2800-3200K 3014 SMD SIDE LIGHT-EMITTING LED
Wavelength(nm)/CT(K)	2800-3200K
Luminous flux	10-12Lm
CRI	75Ra
View Angle	120degrees
Voltage	2.8-3.4V
Current	30MA
Lifespan	50000 hours
Warranty	2 Years

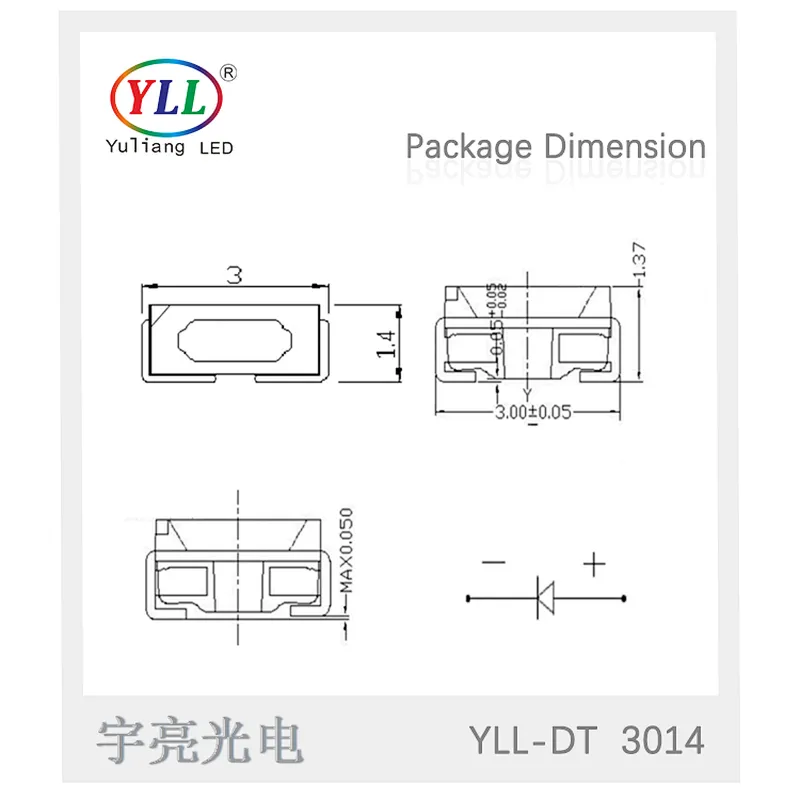

Size	3.0*1.4mm
Feature
-Moisture-Proofing -Dead Lamp-Proofing -Sulfide-Proofing -Good Heat Dissipation -Low Light Decay
Application
-Flexible and Hard Strip Light -Guardrail Tube -Point Light Source -Module -LED Display

Absolute Maximum Ratings at TA=25℃

Electrical / Optical Characteristics at TA=25℃

Optical Characteristics

Product application:

Yuliang LED 3014 Side Light-Emitting SMD is widely applying for

Outdoor Point Light Source, Fence Tube,Wall Washer Light,Line Lamp,Intelligence home lighting etc

pictures	Features & Application	Datasheet
3014 LAMP BEADS SERIES
	Feature: Thermo electric Separation Dead lamp-Proofing Sulfide-proofing moisture-proofing High brightness wide beam angle Low impendence Good heat disspitation Application: LED Flexible strip Light LED Hard Strip Light LED Guardrail Tube LED Module LED Point Light Source LED outdoor lamps	Type: SMD LED Model Number: YLL3014 Emitting Color: 2800-3200K/4000-4500K/6000-6500K/ RED/GREEN/BLUE/YELLOW Luminous Flux(mcd/LM): 400-1200mcd,8-12LM Power Dissipation: 0 Viewing Angle(°): 120 Color Rendering Index(Ra): 80 Operating Temperature(℃): 40 - 60 Storage Temperature(℃): 20 - 80 Voltage: 2.0-2.2 3.0-3.4 Current: 20mA/30ma/60ma Place of Origin: Guangdong, China (Mainland) Brand Name: YLL LED chip: Epistar warranty: 2years service: OEM ODM are welcomed LED type: SMD3014 Package: Anti-static bag

pictures

Features & Application

Datasheet

3014 LAMP BEADS SERIES

3014 .jpg
