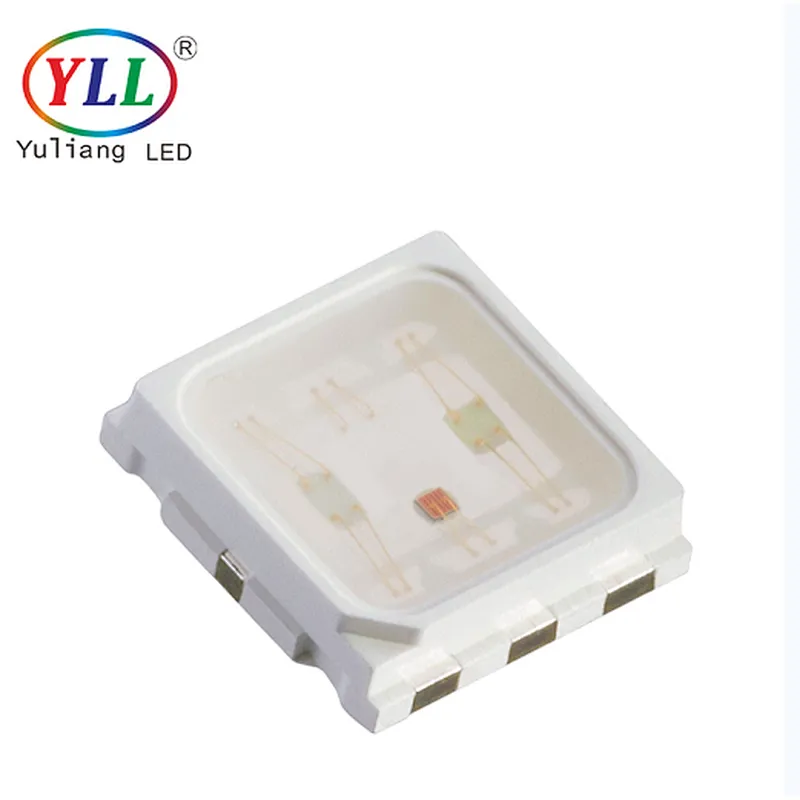

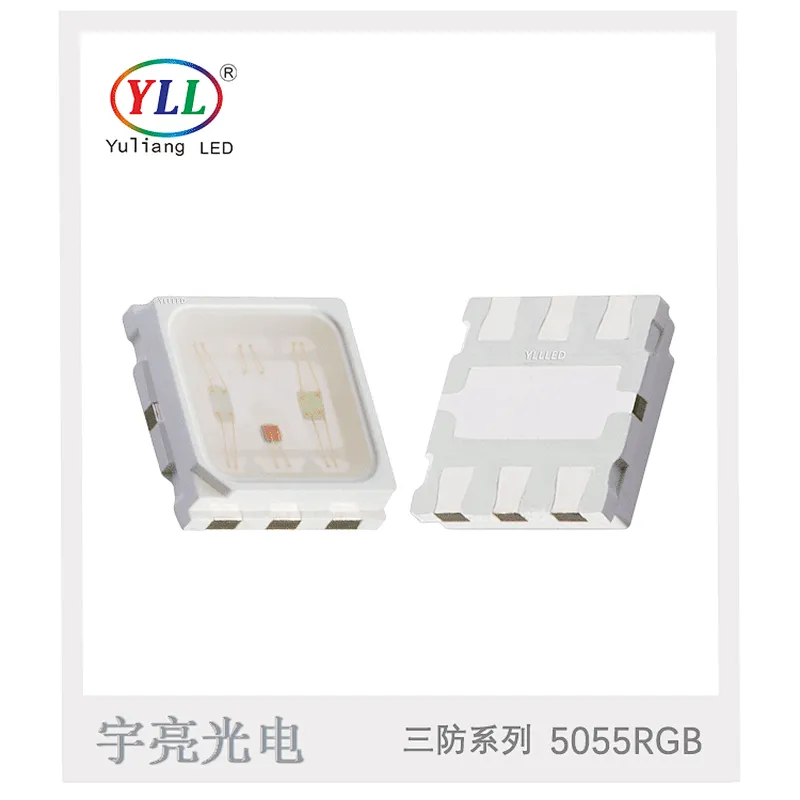

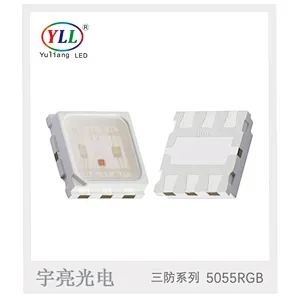

1.5W 5050 rgb beauty color changing led chip

1.5W 5050 rgb beauty color changing led chip

Price:: USD 0.15-0.18 / pieces
Delivery: FOB
Minimum order quantity: 1000 pieces
Supply Ability: 100000000 pieces / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Type:SMD LED
Chip Material:InGaN
Place of Origin:CN;GUA
Certification:CE
Certification:RoHS
Emitting Color:RGB
Luminous Intensity:R:10-12lm G:25-30lm B:8-10lm
Luminous Flux(lm):R:10-12lm G:25-30lm B:8-10lm
Optical Attenuation(%):3
Power Dissipation:1.5
Viewing Angle(°):140
Color Temperature:RGB
Operating Temperature(℃):0 - 40
Storage Temperature(℃):-20 - 80
Brand Name:YLL

1.5W 5050 rgb beauty color changing led chip

Item No.		5050 RGB
Product specifications	A	8mil RGB 400-600mcd(R); 800-1000mcd(G); 300-500mcd(B);	10mil RGB 600-800mcd(R); 1200-1400mcd(G); 500-700mcd(B);	14mil RGB 600-800mcd(R); 500-700mcd(B); 1500-2000mcd(G);	0.5W RGB 1500-2100mcd(R); 1200-1800mcd(B); 3000-3600mcd(G);	1.5W RGB 10-12LM(R); 8-10LM(B); 25-30LM(G);
	WL/CT(nm/K)	RED:620-630nm Green:525-525nm Blue:465-470nm
Voltage		2.0-2.2V(R),3.0-3.4V(B/G);	2.0-2.2V(R),3.0-3.4V(B/G);	2.0-2.2V(R),3.0-3.4V(B/G)	2.0-2.2V(R),3.0-3.4V(B/G)	2.0-2.6V(R),3.2-3.6V(B/G)
Current IF(ma)		20ma	20ma	20ma	60ma	150MA
Angle		140
Rated life		50000h
Working temperature		-20~+40°C
Warranty		3 years
Certificate		CE, ROHS,LM80
Application		LED Strip Light,LED Point Light Source, LED Guardrail Tube , LED Module, Outdoor Lighting Etc
Inside packing size		1002PCS/BAG
Outside packing size		12x12x2cm
Pieces per carton		46.530.542CM (76K)

Moisture-proof

Dead Lamp-proof

Sulfide-proof

Good Heat Dissipation

Untra Low Light Decay

1.Epistar proof document,Pass Energy Star LM80 and CE ROHS

2.Long Lifespan 100000hours

3.Low Light Decay

4.Enviornmental protection,No Mercury.

5.Energy Saving

6.Fast Response Time,response in dozens of ns,safely.

7.Small Volume, Light Weight,Shock-proofing

8.High Lumens,Light Source Stable ,Low Heat Dissipation

9.Easy to adjust the light and color temperature

Notes

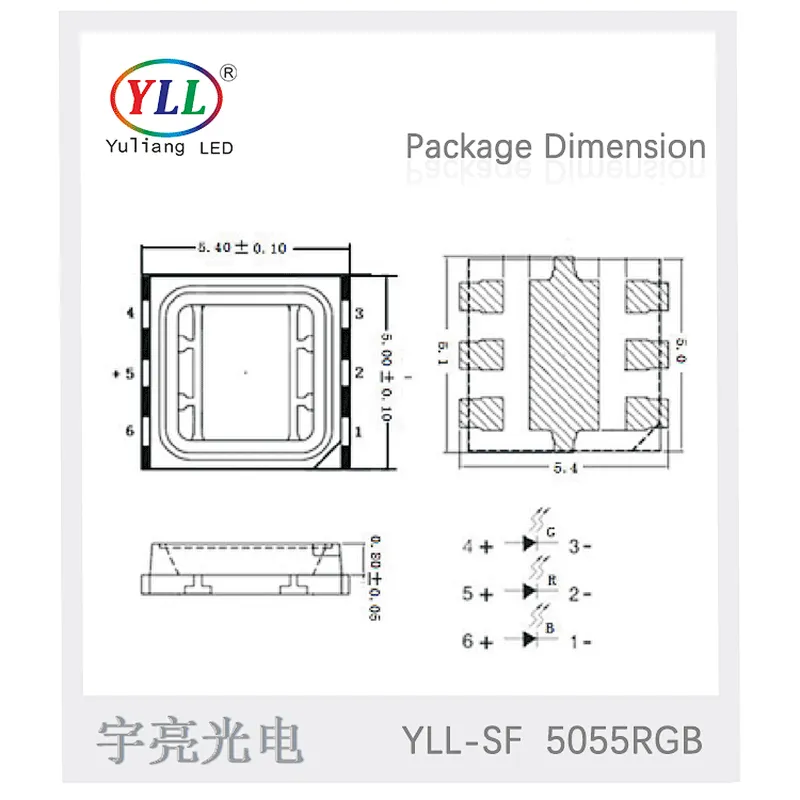

All dimensions are in millimeters (inches).

Tolerance is ± 0.25mm (.010”) unless otherwise noted.

Protruded resin under flange is 1.0mm(.04”) max.

Yuliang LED 5050 RGB SMD is widely applying for LED Strip Light,LED Point Light Source, LED Guardrail Tube , LED Module, Outdoor Lighting Etc.

Shenzhen Yuliang Optoelectronic Techology Co.,Ltd has successfully passed ISO9001:2008, and all products are available for CE-EMC,CE-LVD, ROHS,LM-80 Certification Testing.

National Hi-Tech Enterprise

Ten years Focused on SMD LED Package

Has a full set of LED Package Experimental Independent laboratory

Auto Lights/ Outdoor Lighting Project Light Source priority partnership

Pass U.S.Energy Star LM-80/ EU EN62471

Two-year Warranty

Return or replacement within two years if there have any defected product or malfunctioning product or broken product.

Exchange & Return Policy

1)The shipment cost should be taken by supplier if there have defected product or malfunctioning product or broken product within two years.Replacement will be sent to you in your next order if you don’t want to return.

2)0.3% free spare part for volume order,in the same time,we will give you replacement as compensation with next

order if faulty product rate reach to 0.3%.
